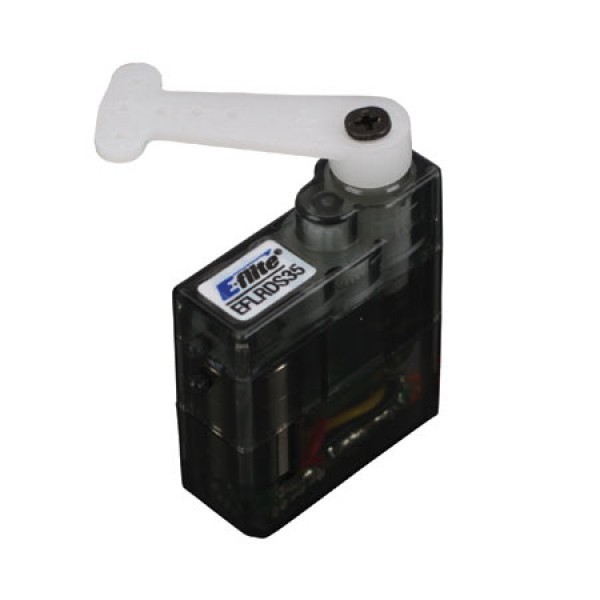

Digital high speed, precise centering servo is perfect for electric indoor sub-micro flyers, slow flyers, small park flyers, high-performance 3D models, sub-micro electric helicopters, and hand launch gliders.

  • Digital amplifier for superior accuracy, response and holding torque
  • High speed, 0.05 sec @ 60° @ 4.8V for quick control response
  • Precise centering - less than 1°
  • Lightweight, just 3.5 grams

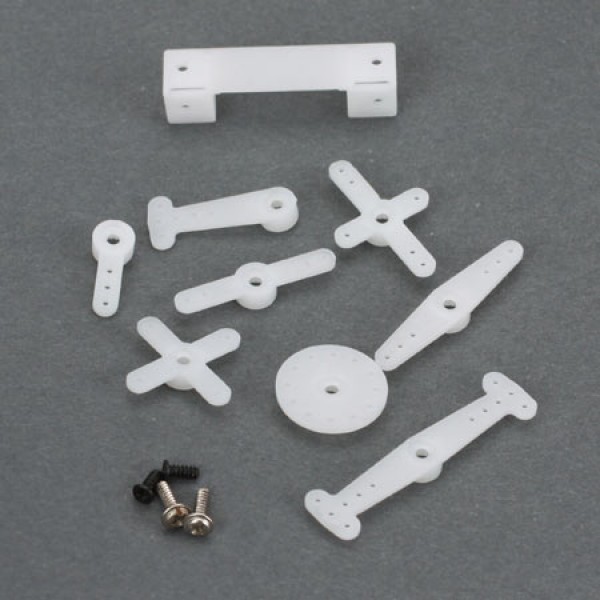

  • Includes convenient clip mount and mounting hardware
  • Includes multiple servo arms including an extra-long 3D servo arm for extreme throws
  • JST-ZHR (1.5mm) connector is compatible with Spektrum Nanolite AR6300 & AR6310 receivers
  • Optional connector adapters are available to work with most major brand receivers
Size Category
Minis and Micros
Type
Digital
Application
Sub-micro and Micro-sized airplanes and helis
Torque
4.0 oz-in (0.29kg-cm) @ 4.8V; 3.2 oz-in (0.23kg-cm) @ 3.7V
Speed
0.05 sec/60° @ 4.8V; 0.06 sec/60° @ 3.7V
Length
0.68 in (17.5mm)
Width
0.25 in (6.4mm)
Height
0.85 in (21.8mm)
Weight
0.125 oz (3.5g)
Motor Type
Coreless
Connector Type
JST-ZHR (1.5mm)
Gear Type
Nylon
Current Draw Idle
30mA @ 4.8V; 20mA @ 3.7V
Current Draw Stall
350mA @ 4.8V; 230mA @ 3.7V
Voltage
3.0V-5.0V DC
Deadband
<1μs
SKU EFLRDS35
Barcode # 605482028643
Brand E-Flite
Shipping Weight 1.0000kg
