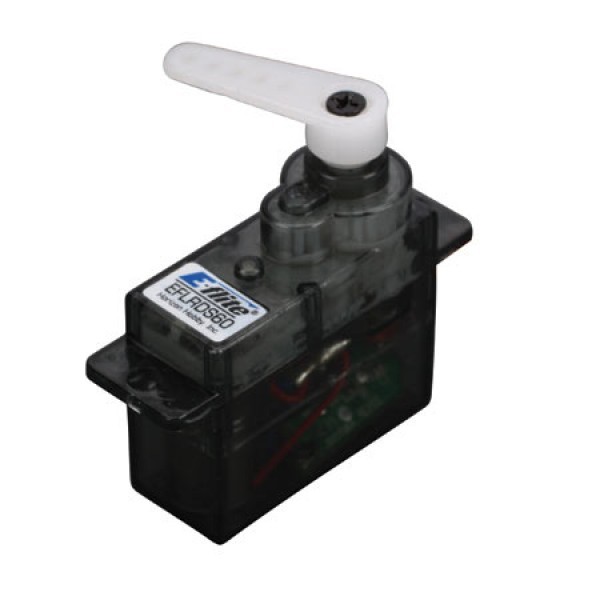

Digital high speed, high torque, precise centering servo is perfect for electric indoor micro flyer, slow flyer and high-performance 3D models, small park flyers, micro electric helicopters, hand launch gliders.

  • Digital amplifier for superior accuracy, response and holding torque
  • High speed .09 sec @ 60° @ 4.8V for quick control response
  • High torque, 13.1 oz-in (0.94 kg-cm) @ 4.8V
  • Precise centering - less than 1°
  • Lightweight, just 6.0 grams
  • Universal connector compatible with major brand receivers
  • Includes complete mounting hardware

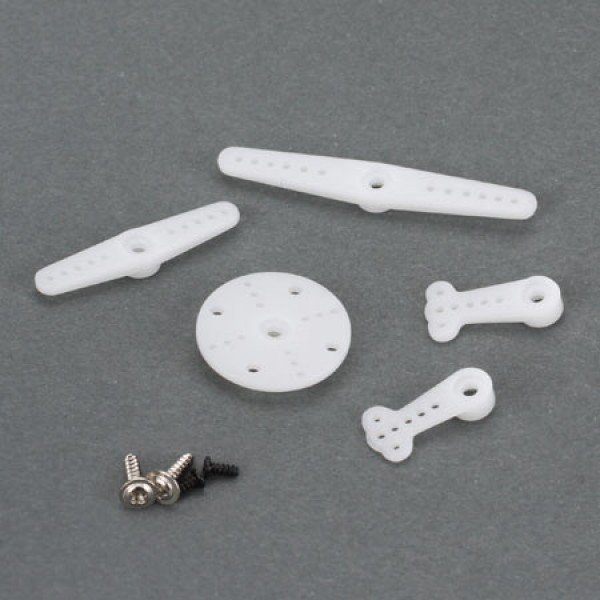

  • Includes multiple servo arms including an extra-long 3D servo arm for extreme throws
Size Category
Minis and Micros
Type
Digital
Application
Sub-micro and Micro-sized airplanes and helis
Torque
13.1 oz-in (0.94kg-cm) @4.8V; 16.1 oz-in (1.15kg-cm) @ 6.0V
Speed
0.09 sec/60° @ 4.8V; 0.08 sec/60° @ 6.0V
Length
0.92 in (23.5mm)
Width
0.40 in (10.0mm)
Height
0.96 in (24.0mm)
Weight
0.21 oz (6.0g)
Motor Type
Coreless
Connector Type
Universal
Gear Type
Nylon
Current Draw Idle
25mA @ 4.8V
Current Draw Stall
560mA @ 4.8V
Voltage
4.8V-6.0V DC
Deadband
<1μs
SKU EFLRDS60
Barcode # 605482037515
Brand E-flite
Shipping Weight 0.0500kg
