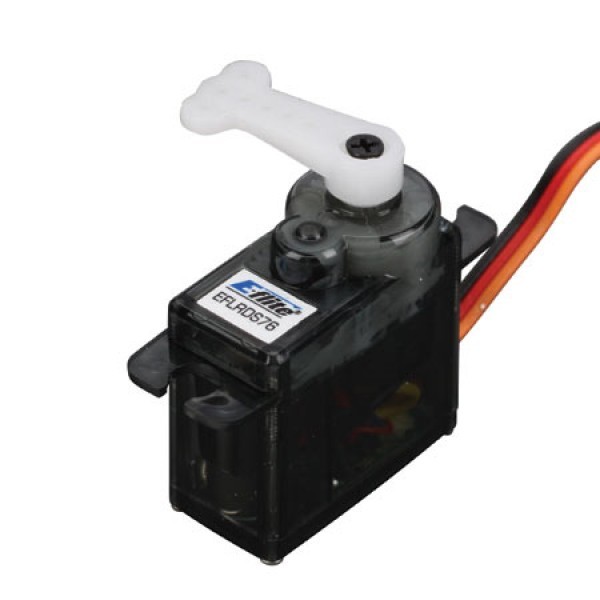

Digital high speed, high torque, precise centering servo is perfect for electric, park flyer, and high-performance 3D models, micro and mini electric helicopters, hand launch gliders.  Replacement servo for the Blade 450 3D Heli.

  • Digital amplifier for superior accuracy, response and holding torque
  • High speed, .11 sec @ 60° @ 4.8V for quick control response
  • High torque, 24.2 oz-in (1.75 kg-cm) @ 4.8V
  • Precise Centering - less than 1°
  • Lightweight, just 7.6 grams
  • Universal connector compatible with major brand receivers
  • Includes complete mounting hardware

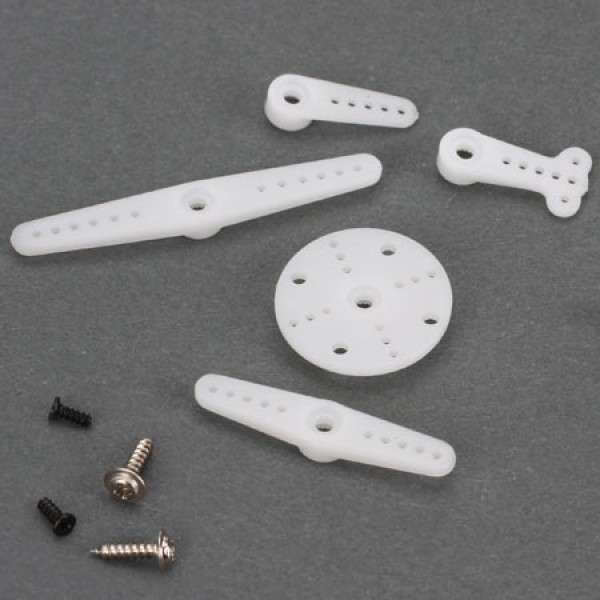

  • Includes multiple servo arms including an extra-long 3D servo arm for extreme throws
  • Replacement servo for Blade 450 3D
Size Category
Minis and Micros
Type
Digital
Application
Sub-micro and Micro-sized airplanes and helis
Torque
24.2 oz-in (1.75kg-cm) @ 4.8V; 28.0 oz-in (2.00kg-cm) @ 6.0V
Speed
0.11 sec/60° @ 4.8V; 0.09 sec/60° @ 6.0V
Length
0.90 in (23.0mm)
Width
0.45 in (11.5mm)
Height
0.96 in (24.0mm)
Weight
0.27 oz (7.6g)
Motor Type
Coreless
Connector Type
Universal
Gear Type
Nylon
Current Draw Idle
27mA @ 4.8V
Current Draw Stall
473mA @ 4.8V
Voltage
4.8V-6.0V DC
Deadband
<1μs
SKU EFLRDS76
Barcode # 605482036969
Brand E-flite
Shipping Weight 0.2000kg
