Pilatus PC-21 FEATURES:

• Spektrum AR637TA+ receiver with full-range telemetry and industry-leading DSMX technology
• Receiver loaded with a Smart Transmitter File (STF) that allows you to automatically import all settings for NX and iX series transmitters during the binding process
• Easier to fly with innovative and optional-use SAFE Select flight envelope protection
• The unmatched stability and locked-in feel of exclusive and enhanced AS3X+ technology
• The most convenient, detailed, and capable scale replica of the unique Pilatus PC-21 advanced trainer flown by air forces worldwide
• An abundance of scale details including exhaust stacks, simulated antennas, pilot figures, and more
• Functional scale features including flaps, nose gear doors, retracts, LED landing, navigation, and anti-collision lights
• Extremely wide flight envelope from unexpectedly stable slow-flight to locked-in precision aerobatic capabilities and beyond
• 100-amp Spektrum Avian Smart ESC provides real-time battery voltage, temperatures, motor RPM and other data with Smart and non-Smart batteries
• Optional-use motor/thrust reversing to help shorten rollout after landing and for other special ground handling capabilities
• Fits 6S batteries from 4000-7000mAh to deliver a wide range of performance and flight times

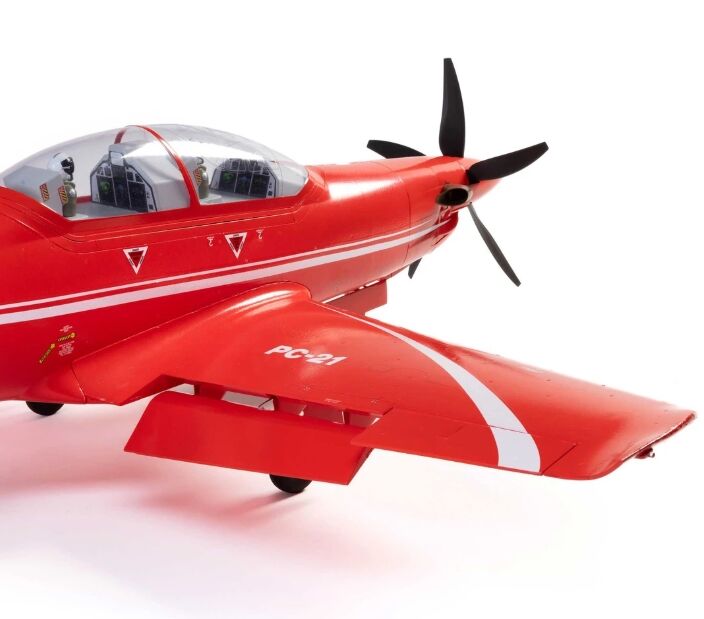

• Unlimited vertical performance plus level-flight top speeds up to 100+ MPH with the stock 5-blade propeller and spinner
• More speed, lower current draw and longer flight times using the included 2-blade spinner and an optional (sold separately) APC 12x12E prop
• Seven factory-installed metal-geared servos with precise ball-link equipped linkages

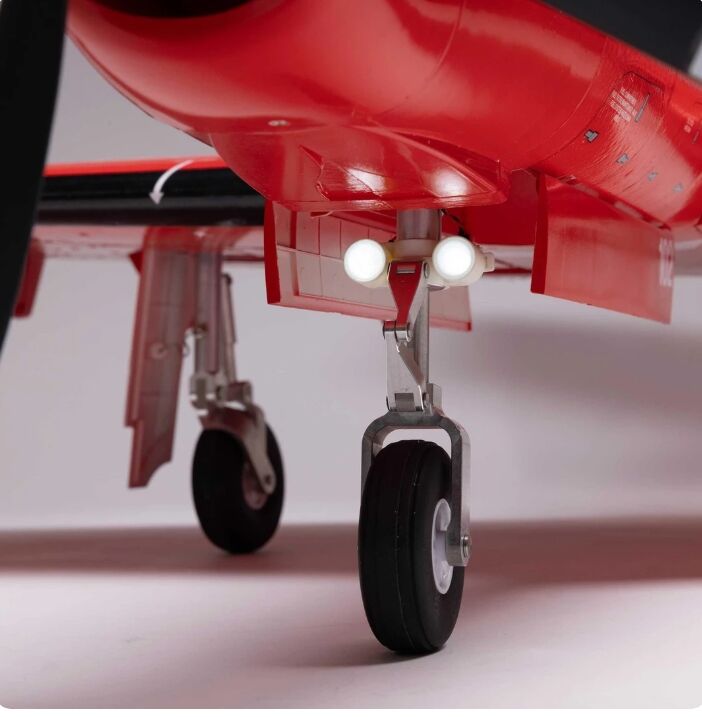

• Electric retracts with shock-absorbing and heavy-duty trailing link struts to fly from a variety of surfaces including pavement, dirt and short grass
• Functional flaps with scale hinges and hidden linkages for shorter takeoffs and landings plus improved slow-flight performance
• Plastic capped hatch edges and opening for added durability to prevent damage and paint chipping
• No glue required for assembly and can be ready to fly in less time than it takes to charge a battery

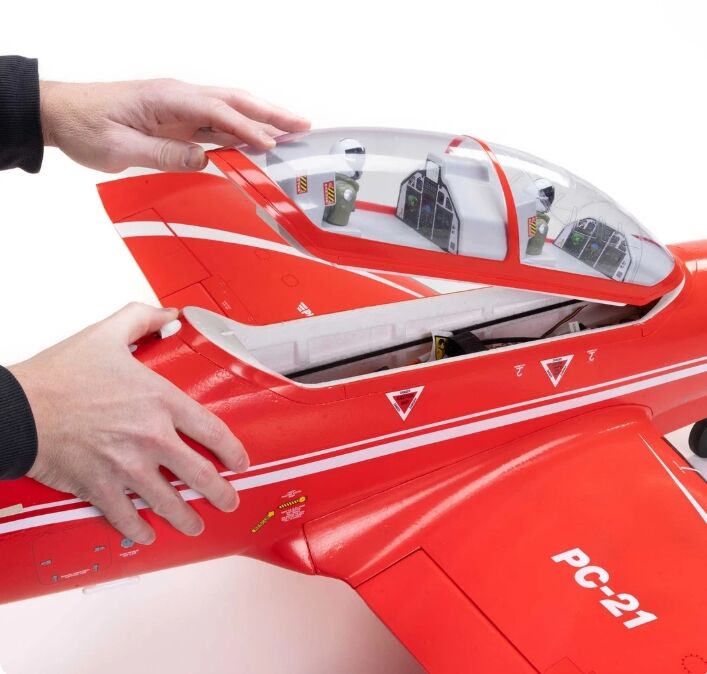

• Convenient top hatch with clear canopy, cockpit detail, and two pilot figures
• Premium fully painted trim scheme with factory-applied water-slide decals
• Two-piece wing with hands-free connections that bolts into place
• Extremely durable, fully molded high density EPO airframe

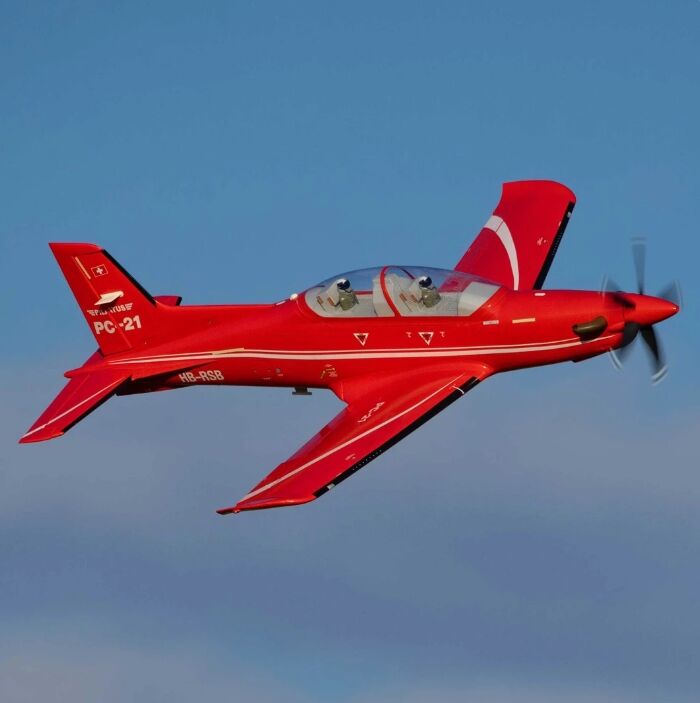

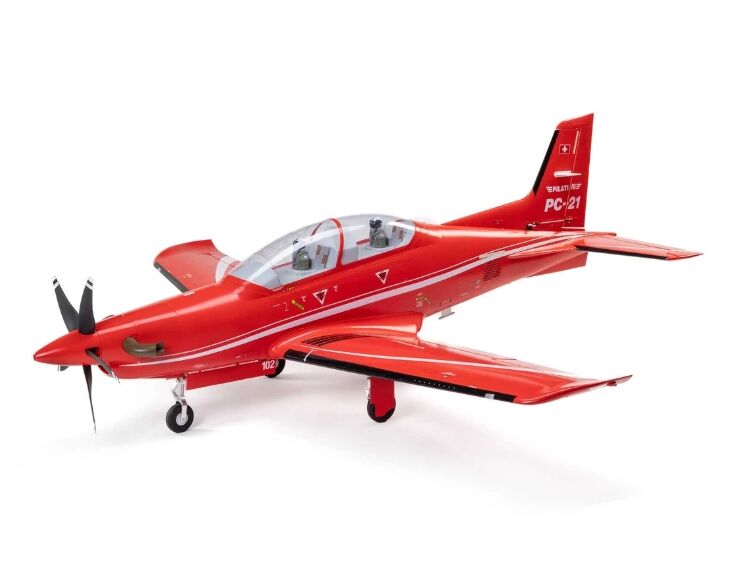

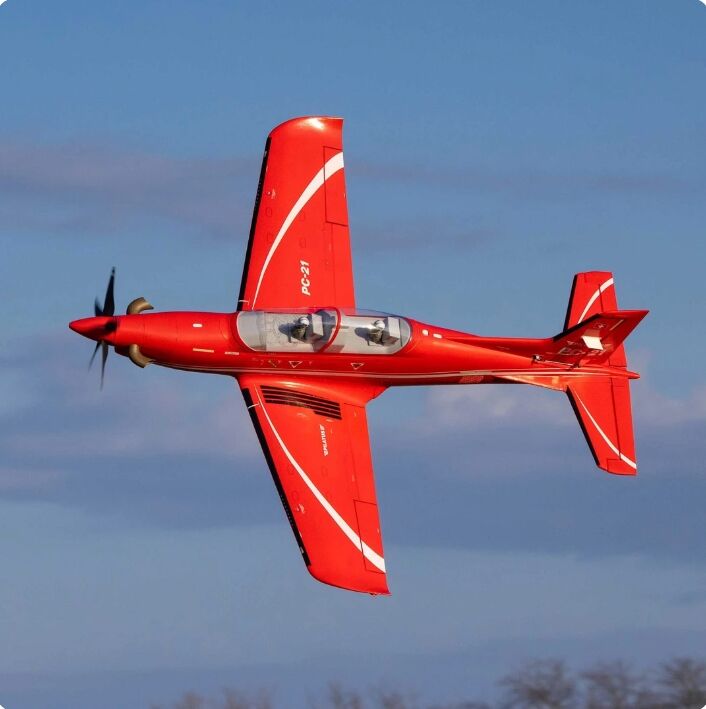

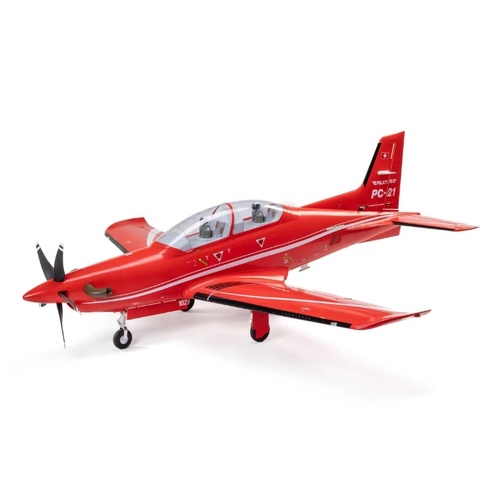

The Pilatus PC-21 is an advanced training platform developed specifically to meet the needs of modern pilots. Designed and built in Switzerland, it features a turboprop engine to deliver jet-like performance and high-G capability, making it the top choice of numerous air forces around the world. The E-flite® PC-21 1.3m (1.45m L) is a tribute to the unique design featuring a variety of scale details along with functional retracts and flaps, plus landing and navigation lights. It's equipped with a 5-blade propeller, a specially tuned brushless motor, and a Spektrum™ Avian™ 100A Smart ESC compatible with 6S 4000–7000mAh batteries to deliver unlimited vertical performance and level-flight top speeds up to 100+ MPH. The BNF Basic version also includes a telemetry-capable AR637TA+ receiver with enhanced AS3X+®, optional-use SAFE® Select, and convenient Smart Transmitter File technologies that make it even easier for a wide range of pilots to fly and enjoy!

Skill Level 3 – Intermediate Pilots (Experience Required)

Skill Level 3 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up and fly similar class models. You should have the experience and skills necessary to successfully fly models like the E-flite ElectroStreak 1.1m, V1200 1.2m, 1.2m to 1.5m warbirds, 64mm and larger EDF, or other similar class models before attempting to fly the PC-21 1.3m BNF Basic version.

Bind-N-Fly® Completion Level Advantage

Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!

Exclusive Technologies

This BNF Basic version PC-21 1.3m is equipped with a factory-installed Spektrum AR637TA+ receiver that features exclusive Spektrum AS3X+ and SAFE Select technologies. Enhanced AS3X+ works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch! If you don't want to enable the SAFE Select features, simply bind the receiver normally, and only AS3X+ will be active.

Choose Your Performance

The PC-21 1.3m is factory-equipped with a high-power brushless power system that gives you the option to choose the performance you prefer with common and popular 6S 4000–7000mAh batteries. Install the included 5-blade prop and spinner for less noise and to deliver unlimited vertical performance plus level-flight top speeds up to 100+ MPH. Or install the included 2-blade spinner and an optional APC 12x12E prop (APC12012E, sold separately) to achieve even higher speeds at significantly less current draw for longer flight times with the same batteries.

Strength and Precision

Speed is nothing without the right balance of strength and precise control. The PC-21's stunning and sleek airframe is molded in high-density EPO that results in a stronger and stiffer airframe. It's also composite-reinforced including multiple carbon fiber spars throughout the wing, fuselage and tails. Plus, it's equipped with metal-geared servos and linkages with ball-links that deliver the precise control and reliability you need to enjoy flying scale-like or fast flight after flight.

Smart Transmitter File

This BNF aircraft is equipped with a receiver that is loaded with a Smart Transmitter File (STF) that makes programming your transmitter as easy as a few clicks of a button. When you bind your NX or iX series transmitter to an STF-equipped aircraft, all programming parameters download automatically from the receiver. Switch assignments, rates, expo, telemetry, and voice callouts configure themselves. No lengthy step-by-step instructions. No continual adjustments. Just push-button convenience that gets you flying faster!

Smart Technology

The PC-21 1.3m is equipped with an exclusive Spektrum Avian Smart ESC that can provide a variety of real-time power system related telemetry data including overall battery voltage and more – with Smart and non-Smart batteries – via compatible receivers (including the AR637TA+ installed in the BNF Basic version) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly. With a 7–8+ channel transmitter, you can also utilize the optional-use motor/thrust reversing to shorten rollouts after landing and for other unique ground handling capabilities.

Functional Features

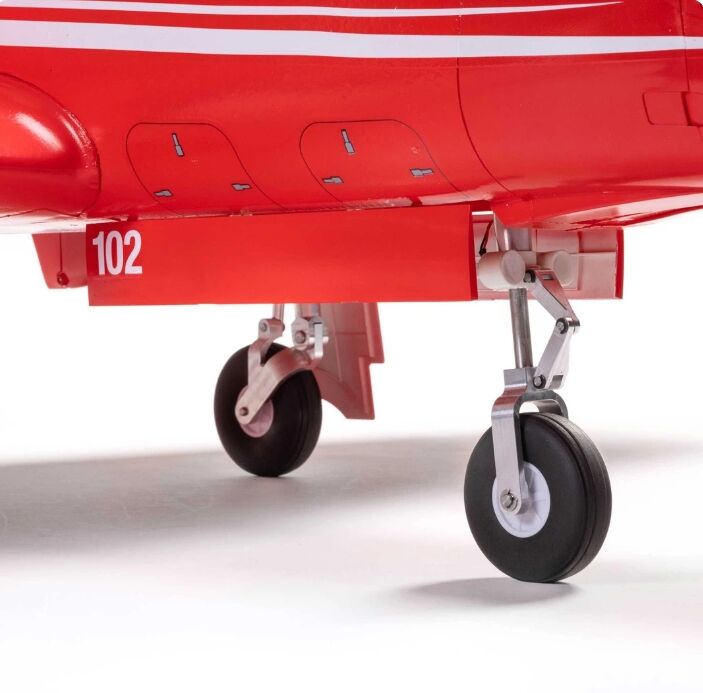

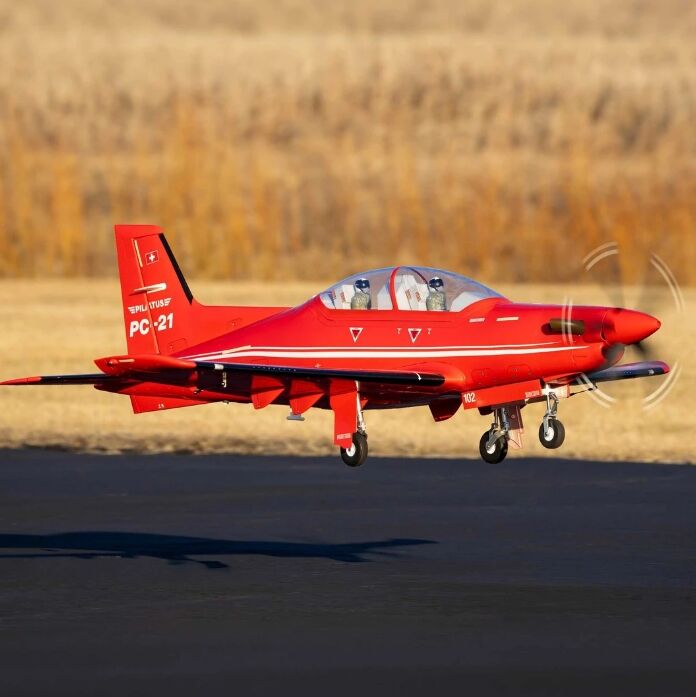

Operational flaps with true-to-scale hinges and hidden linkages offer improved slow-flight capability and performance while also making it possible to take off and land in shorter distances and at slower speeds. Durable and reliable electric retracts with shock-absorbing and heavy-duty trailing link struts make it possible to fly from a variety of surfaces including pavement, dirt and short grass.

Easy Assembly

No glue is required for assembly and you can have the PC-21 1.3m ready to fly in less time than it takes to charge a battery! With a total of eight hex head screws, the vertical stabilizer and the two-piece wing bolt into place and can easily be removed for convenient storage and transport. Plus, the horizontal stabilizers snap into/out of place without the use of any tools or fasteners.

Scale Details

Nose gear doors plus LED landing, navigation, and anti-collision lights, exhaust stacks, simulated antennas, and more are features that take your scale experience to another level.

What’s in the box?

• (1) E-flite PC-21 1.3m (1.45m L), installed with:
  • (7) Spektrum Metal-Geared Servos
  • (1) Spektrum Brushless Outrunner Motor
  • (1) Spektrum Avian 100-Amp Smart Brushless ESC
  • (1) Spektrum AR637TA+ 6-Channel Receiver with AS3X+ and SAFE Select
•  (1) Product Manual

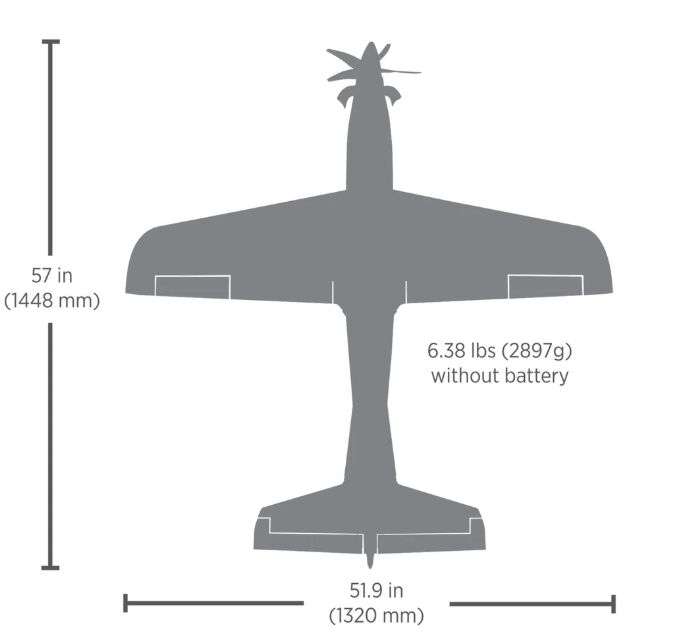

Product Length

57" (1448 mm)

Product Weight

Without Battery: 102.19oz (2897g) / With Recommended 6S 5000mAh Battery: 127.59oz (3617g)

Battery

Sold Separately

Lighting

LED Navigation and Landing Lights

Completion Level

Bind-N-Fly Basic

Minimum Required Radio

Full-range 6–8+ channel Spektrum DSMX/DSM2 compatible transmitter

Servos

Included

Approximate Assembly Time

Less than 1 Hour

Flaps

Yes

Radio

Sold Separately

Recommended Motor Battery

6S 4000-7000mAh 30C or higher with IC5

Motor Size

5065-470Kv

Charger

Sold Separately

Skill Level

Level 3

Connector Type

IC5

Minimum Speed Control

Avian® 100Amp Brushless Smart ESC, 3-6S

Trim Scheme Colors

Red

CG (Center of Gravity)

105–119mm behind the leading edge of the wing at the fuselage

Wingspan

51.97" (1320 mm)

Propeller Size

5-Blade 12 x 12 Electric

Receiver

Included

Power Type

Electric

Material

EPO

Speed Control

Included

Technology

AS3X+, SAFE Select, Smart Transmitter File, Smart

Retracts

Included

Motor Type

Brushless

LiPo Compatibility

6S
