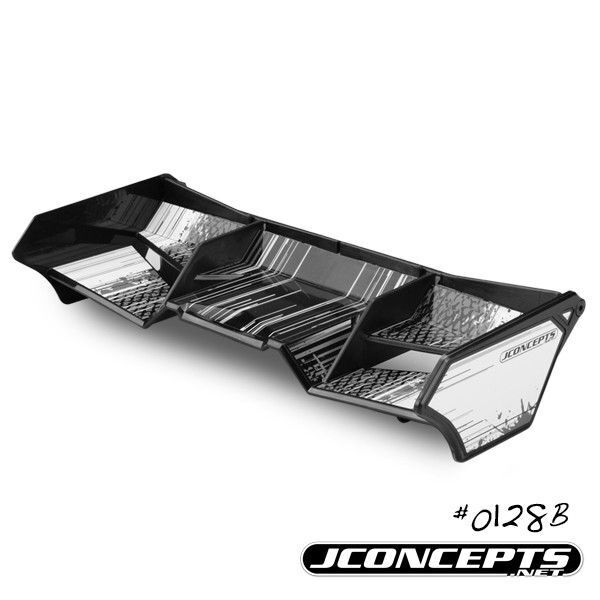

JConcepts releases revolutionary 1/8th rear wing with adjustable gurney and JConcepts dynamic flare.

Aerodynamics is a key point on any vehicle and in particular, 1/8th off-road vehicles. A drivers aero package consists of the vehicle type, body style and finally the finishing touch, the rear wing. JConcepts regularly experiments with aero features throughout the entire product line, primarily bodies and wings. The Illuzion HD wing has been a regular on the racing circuit since its introduction in 2007 and the Punisher wing a favorite since 2010. For the 2012 IFMAR World Championships, JConcepts, together with their pro racing team of drivers, developed a new high-performance, adjustable rear wing for 1/8th racing.

The Finnisher Wing features a high-attack, V-angle design with adjustable gurney and winglet options. A radical, edgy design which functions and compliments the Finnisher and Silencer body design, the new wing includes elements and features never seen before in 1/8th Off-Road. An option gurney or winglet is easily added to the wing with one simple 3x8mm screw. The wing can be run stock with a small winglet which provides some edge stability and light deflection. The included optional 2-piece gurney slides in through the bottom on both sides adding that small vertical wall at the rear providing that last bit of tuning ability on dusty and low grip conditions.

The wing to vehicle attachment is made easy with included, screw-in type and body-clip type wing button choices adding security and additional detail. Top off the appearance of the Finnisher by applying the pre-cut decal wrap on each panel surface for the ultimate look and performance. The recessed side-dams, introduced by JConcepts, provide a great placement area for included decals. In addition, the wing includes one of a kind pre-dimpled markings for exact fit locations on 6 popular 1/8th buggies (Associated, TLR, Mugen, Kyosho, XRay and Agama). Simply find your vehicle of choice and ream the hole to vehicle fit specifications and the Finnisher is ready to hit the track. Finnish the competition with JConcepts.

  • JConcepts high-attack, V-angle Finnisher design
  • Radical, edgy design which compliments, Finnisher and Silencer body designs
  • Screw-in type and body-clip type wing button choices
  • Blue anodized aluminum washer for screw-in wing button
  • Gurney and winglet options with hardware
  • Die-cut decal sheet for ultimate looks, performance and ease of use
  • Light-weight design and materials
  • Pre-dimpled markings for 6 popular vehicles with instruction sheet

Start by locating the wing mounting positions for your vehicle of choice. AE = Team Associated RC8, TLR = 8ight, M= Mugen MBX-6, K = Kyosho MP9, XRay = XB9, AG = Agama A8. Locate the vehicle initials and follow the corresponding radius line to a small center-point mark and ream or drill a small hole to position your wing. The larger outer diameter circle represents a recommended hole size for that vehicle. Note - Take extra time to make sure your hole size and position is accurate before reaming to the finished position.

SKU JC0128B
Barcode # 845937008633
Brand JCONCEPTS
