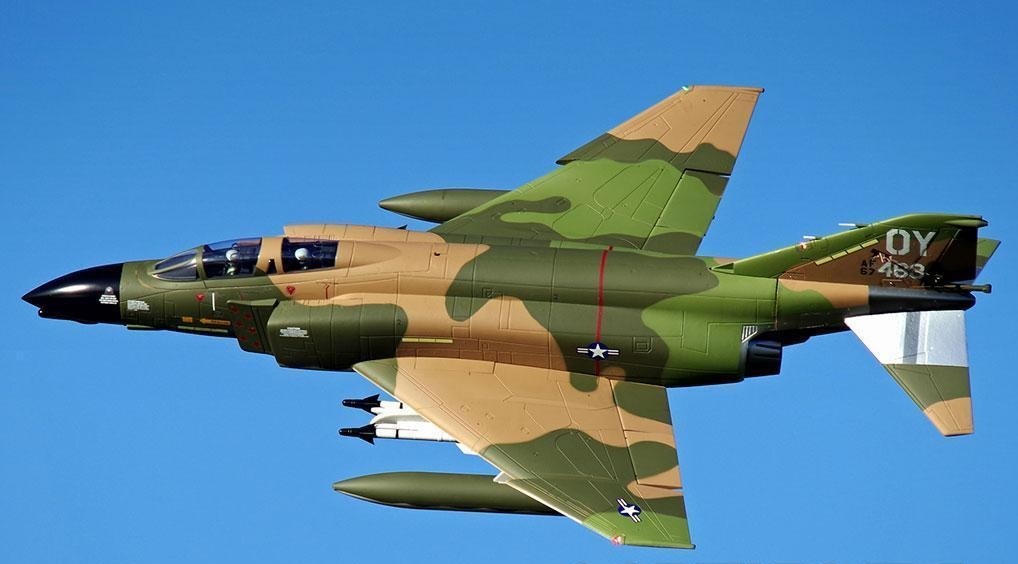

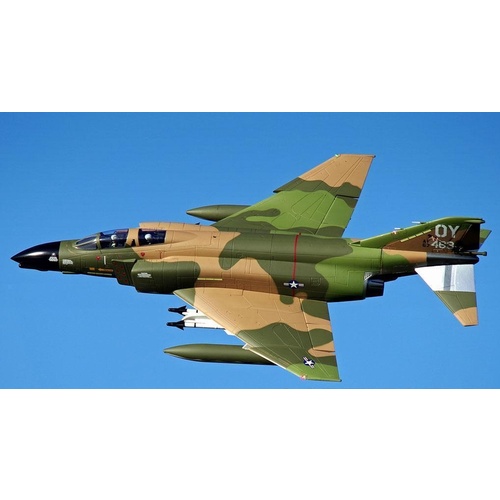

F-4D Phantom II Ultra Performance 8S 90mm EDF Jet from Freewing - PNP - FJ31231P

Version Info: This is the 8S version which comes with a 90mm 12 Blade EDF 8S Power System with a 4075-1390Kv In-Runner Motor and 120A ESC.

Freewing F4-D Phantom II 90mm EDF Jet - Winner for Best Scale Jet at 2018 AEF.

The specter has been revealed! Aviation enthusiasts have long loved the F-4 Phantom, and Freewing and Motion RC are extremely proud to introduce our 90mm Super Scale Series rendition of this ultimate warfighter! For more than 50 years, the F-4 Phantom delivered the versatile capabilities required of an all-weather frontline supersonic interceptor, fighter-bomber, SEAD, and reconnaissance platform. Less than a year after its retirement from US military service, you can still keep the F-4 Phantom flying in your RC fleet!

RC pilots have consistently requested a large F-4 EDF jet that performs excellently out of the box without endless modifications. We developed this F-4 to deliver reliability, durability, and performance from your very first flight. Grass operation is a hallmark of the Freewing 90mm F-4. With its wide stance, tall main tires, Oleo suspension nose strut and concealed trailing link suspension main struts, this aircraft performs well on rougher grass fields.

Super scale details include accurate dual landing lights flush-mounted into the scale operating nose wheel doors, DayBright position lights, rivet detail, static arrestor hook, and period accurate ordnance comprising four AIM-9D Sidewinders and two 370 gallon fuel tanks on removable hardpoints. Plastic details include pitot tubes, ejection seat pull rings, and molded exhaust nozzles. The large fiberglass nose cone is magnetic and removable, and the chin pod beneath it is foam, allowing easy removable and customization for other versions (-C or late -D).

Representing the famed aircraft BuNos 66-463 operated by pilot Richard “Steve” Ritchie and weapons systems officer Charles “Chuck” DeBellevue when they scored their fifth kill together on May 10, 1972 over Vietnam, the Freewing 90mm F-4 arrives pre-painted in classic SEA (South East Asia) Camo and proudly wears the markings of the 555th TFS. For piloting wanting to customize their F-4 with their own scheme,

Such a large RC model aircraft remains easy to transport with magnetic removable fiberglass nose cone and removable wings with a convenient flexible wire harness that attaches at each wing root. Large flaps, brass ball links, reliable control hardware, and digital servos throughout the aircraft provide positive control, and a specially designed elevator mechanism incorporates two ball bearings for smooth rotation at all times.

The Freewing 90mm F-4 Phantom II is available in two power system versions. The Ultra Performance version requires an 8S 5000 mAh LiPo battery, and delivers increased vertical climbing performance and acceleration. The Ultra Performance version is recommended for Advanced pilots only due to the aircraft’s higher speed envelope and heavier flying characteristics. The other version is the high performance version which requires a 6S 5000-6000 mAh LiPo battery, and is our top recommendation to pilots seeking the best balance between speed, thrust, and cost.

Own the biggest and best performing foam EDF F-4 Phantom in the world – Rejoice RC pilots, Freewing has delivered another grand slam!



Note: The F4 Phantom displayed in the photos above - while similar in livery - is a custom-painted pre-production version and not the actual final production version.

Features:

  • 12 Blade EDF with 8S Power System
  • Heavy-duty 150 Amp Hobbywing ESC with 5A UBEC
  • Removable ordnance (4x AIM-9 Sidewinder missiles and 2x magnetic fuel tanks)
  • Scale operating nose door and landing lights
  • Durable suspension struts for grass operation
  • Removable wings and stabilizers for convenient transport
  • Removable magnetic fiberglass nose cone
  • Digital servos throughout

Includes:

  • Freewing F-4D Phantom II Ultra Performance 8S 90mm EDF Jet - PNP

Requires:

  • 6 Channel radio
  • 6 Channel receiver
  • TWO 4 Cell 14.8V 6000 mAh LiPo batteries with EC5 connector
    OR -
    ONE 6 Cell 22.2V 5000 mAh LiPo battery with EC5 connector AND ONE 2 Cell 7.4V 5000 mAh LiPo with EC5 connector
  • EC5 2-to-1 series adapter
  • 4 Cell compatible battery charger - select a minimum 4 cell (4S)

Product Specifications:

AGE LEVEL :18 and up

SKILL LEVEL :advanced

BUILD TIME :3-4 hours

Wingspan

1030mm / 40.15in

Length

1550mm / 61.02in

Empty Weight

2850g / 100.53oz (w/o battery)

CG (Center of Gravity)

190mm (7.5") from the leading edge of the wing at the root

Power System

4075-1390Kv Inrunner Brushless Motor

Electronic Speed Control

150A, EC5 Connector

Propeller / EDF

90mm 12-Blade EDF

Servos

  • 9g hybrid digital standard with 400mm lead : nose gear steering, nose gear door
  • 9g hybrid digital standard with 300mm lead : nose gear door
  • 17g metal gear digital standard with 200mm lead : left aileron, right aileron, left flap, right flap
  • 17g metal gear digital standard with 100mm lead : left flap, right flap
  • 17g metal gear digital standard with 950mm lead : rudder
  • 30g metal gear digital standard with 800mm lead : elevator

Landing Gear

Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts

Required Battery

6 Cell 22.2V 5000 mAh LiPo and 2 Cell 7.4V 5000 mAh LiPo batteries with EC5 connector in series
- or -
Two 4 Cell 14.8V 5000 mAh LiPo Batteries with EC5 connector in series (required)

Required Radio

6 Channel (required)

Ailerons

Yes

Elevator

Yes

Rudder

Yes

Flaps

Yes

Lights

Yes

Hinge Type

Nylon Reinforced

Material

EPO Foam

Skill Level

Advanced/Expert

Build Time

3-4 Hours

Recommended Environment

Outdoor, 300+ foot paved runway or short manicured grass





SKU FJ31231P
Brand FREEWING

Swoosh

By: on 10 November 2020
Awsome plane,Unfortunately mine is in pieces. The small grub screw that holds elevators on came loose in flight and the thing drove itself into the ground. Make sure your do a proper prestart before each flight. The take offs and landings are a breeze. The 8s version is very fast and actually sounds like a realistic turbine. Good bang for buck to have in your hanger and a great training session every flight.
