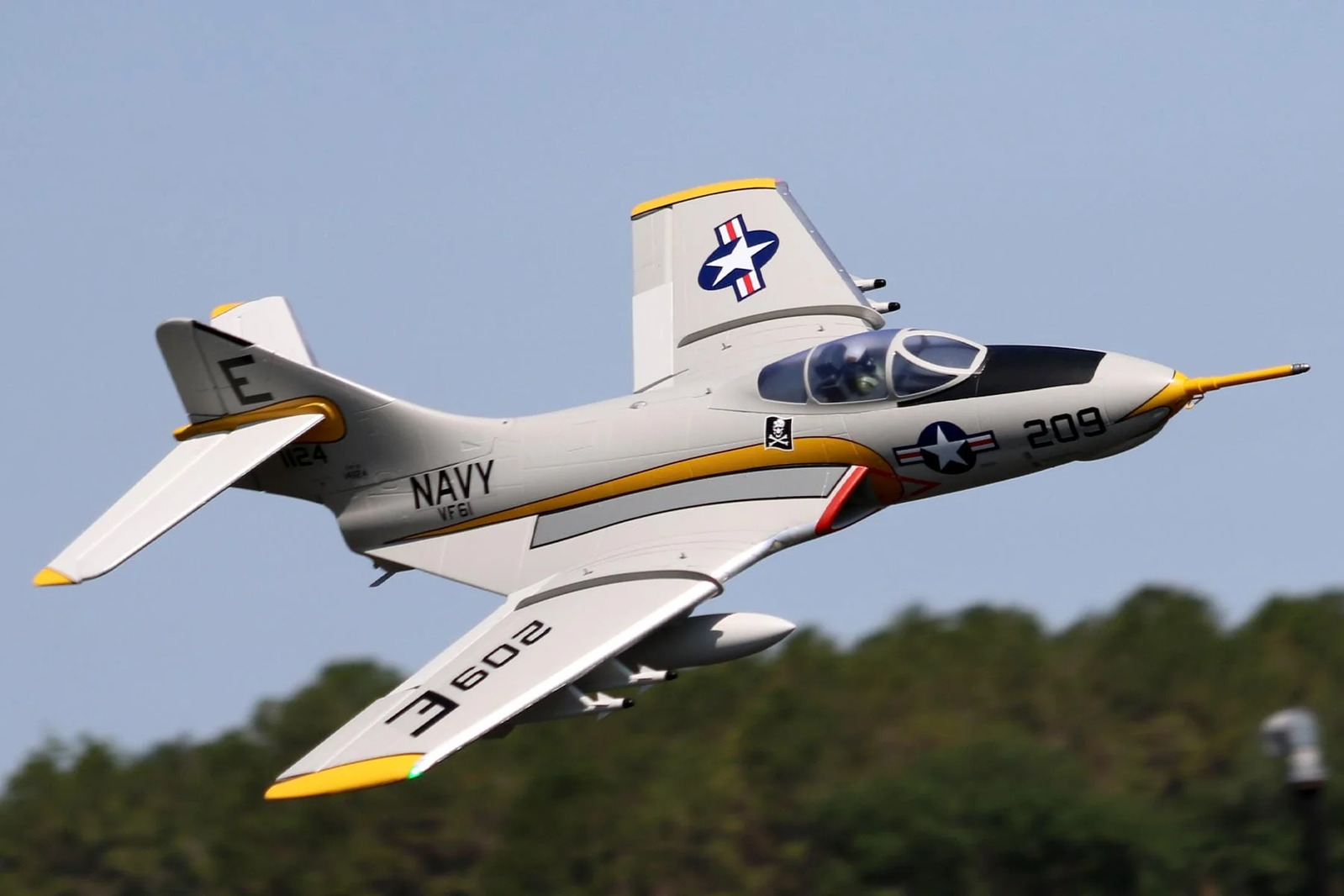

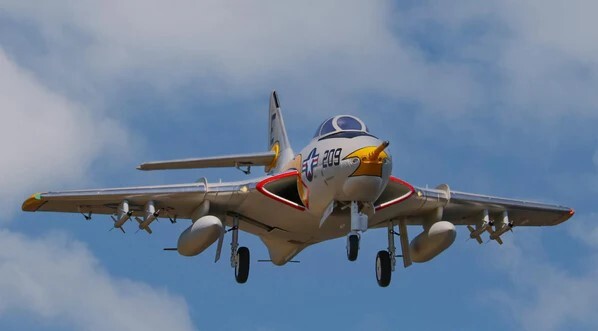

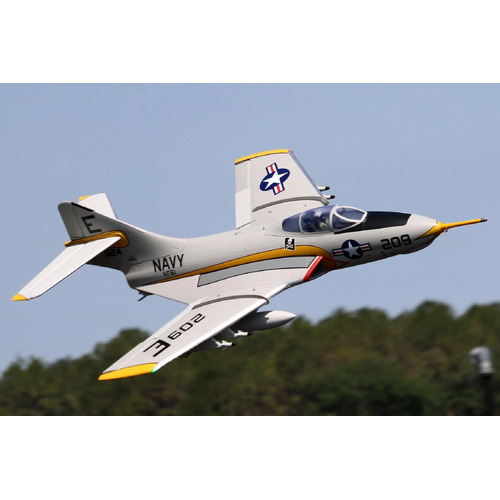

F9F-8 Cougar Super Scale 80mm EDF with Gyro from Freewing - PNP - FJ22011P

The Grumman F9F/F-9 Cougar is a carrier-based fighter aircraft for the United States Navy and United States Marine Corps. Based on Grumman's earlier F9F Panther, the Cougar replaced the Panther's straight wing with a more modern swept wing. Thrust was also increased with the installation of a newer, more powerful engine.

The Freewing F9F-8 Cougar is a next-gen 80mm EDF jet loaded with amenities and details normally reserved for 90mm class jets. This PNP version of the Cougar includes an E52 gyro, ultra-scale CNC landing gear, quick disconnect wings, thrust-reversing ESC, newly designed 12B EDF, scale LED light package, and a new powerful inrunner motor all coming together for a terrific new generation 80mm EDF jet

 Visit the Official Freewing F9F-8 Cougar Super Scale 80mm EDF with E52 Gyro Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

Quick-Install/Release Wings

Quick-Install/Release Wings

The Freewing F9F Cougar PNP includes a screwless quick-release wing design that makes field assembly quick and easy.

Super-Scale CNC-machined Landing Gear

Super-Scale CNC-machined Landing Gear

The Freewing F9F Cougar comes with the most scale CNC-machined gear ever produced in the 80mm class, accentuating the scale details you will find throughout the model.

Powerful Performer

Powerful Performer

With the 3658-2150Kv 80mm inrunner motor the F9F Cougar has the power and performance to take you to the type of heights you desire in a new gen EDF jet.

E-52 Gyro Pre-Installed (PNP Only)

E52 Gyro Pre-Installed (PNP Only)

For the PNP version, an E52 gyro is pre-installed for your convenience. Tackle the skies with the added insuarance a quality gyro can offer you.

6 LED Lights with Controller

6 LED Lights with Controller

The Cougar comes pre-installed with 6 scale LED lights with controller so you can configure your lighting the way you prefer.

Newly Designed 12-Blade

Newly Designed 12-Blade

A newly designed 12-Blade EDF was developed for efficiency, improving performance with the smooth jet whine you've come to enjoy in modern EDF jets.

Features:

  • NEW! E52 gyro included in the PNP version
  • NEW! Quick-Install/Release wings make assembly at the field quick and easy
  • NEW! New, super-scale CNC-machined and painted landing gear (First 80mm jet with ultra scale landing gear)
  • NEW! 90mm detail level in an 80mm jet - Highly scale details are included on this 80mm jet that are normally reserved for 90mm jets
  • NEW! A more powerful 3658-2150Kv 80mm inrunner motor
  • NEW! A newly designed 12-Blade EDF for better thrust, sound, and efficiency
  • Fully enclosed servo operated landing gear doors
  • 10 metal gear servos (the most of any 80mm jet)
  • 6 scale LED lights with LED light controller
  • 100A Thrust reversing ESC with 7A BEC

Includes:

  • Freewing F9F-8 Cougar Super Scale 80mm EDF with Gyro - PNP
  • Servos, motor, ESC pre-installed

Requires:

  • 7 Channel radio - select a minimum 7 channel radio
  • 7 Channel receiver - select a minimum 7 channel receiver
  • 6 Cell 22.2V 4000 - 6000 mAh LiPo Battery with EC5 connector
  • Minimum 6 Cell battery charger - select a minimum 6 Cell battery charger

Product Specifications:

AGE LEVEL :14 and up

SKILL LEVEL :intermediate

BUILD TIME :1 Hour

Scale

1/10

Wingspan

1050mm / 41.3in

Length

1436mm / 56.5in

Flying Weight

~3242g / 114.4oz

CG (Center of Gravity)

106mm from the leading edge of the wing's root

Power System

3658-2150Kv Brushless Inrunner Motor

Electronic Speed Control

100A ESC with EC5 Connector

Propeller / EDF

80mm EDF with 12-Blade Fan

Servos

  • 9g digital metal gear standard with 200mm lead : right gear door, left flap, right flap -
  • 9g digital metal gear reverse with 200mm lead : left gear door -
  • 9g digital hybrid metal gear standard with 300mm lead : left aileron, right aileron, rudder
  • 9g digital hybrid metal gear standard with 400mm lead : left elevator, nose gear steering
  • 9g digital hybrid metal gear reverse with 400mm lead : right elevator

Landing Gear

Super-scale CNC-machined and painted landing gear

Required Battery

6S 22.2V 4000-6000mAh LiPo with EC5 Connector

Required Radio

7+ Channel

Ailerons

Yes

Elevator

Yes

Rudder

Yes

Flaps

Yes

Lights

Yes

Hinge Type

Nylon

Material

EPO Foam

Skill Level

Intermediate

Build Time

1 Hour

Recommended Environment

Outdoors



SKU FJ22011P
Brand FREEWING
