Fuel Tank Gauge 60mm White

A standard 0-190 Ohm signal fuel gauge. Works with all kinds of fuel sensors and both petrol and diesel. Empty(0/4) to Full(4/4) display.



MGG605 Black - White needle over black background

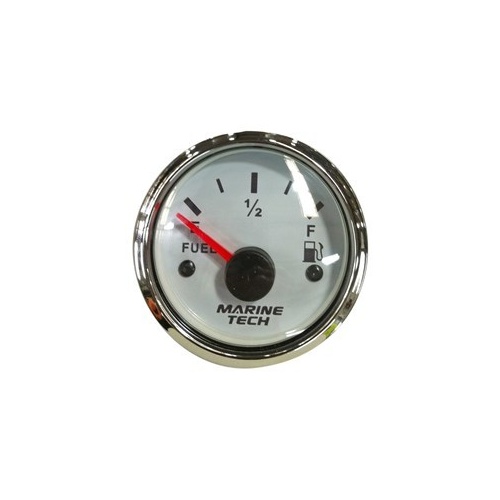

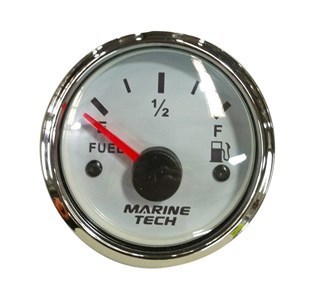

MGG606 White - Red needle over white background

• 60mm overall bezel Dia.
• 2" (52mm) panel cut out
• Anti-vibration, precision error <3°
• IP67 ingress protection (Front Side)
• IP65 ingress protection (Back Side)
• Stainless steel bezel with flat glass
• Background illumination (Red)
• 12/24V
• Pre-terminated connecting plug supplied
• Dropping resistors supplied for 24V panel
• Simple calibration set-up with clear instructions supplied
• Extra technical tips for electrically noisy installations

*Panel thickness 0.8mm-25mm (reverse mounting the plastic lock nut achieves this.)
*Requires 55mm clearnace behind mounting panel
