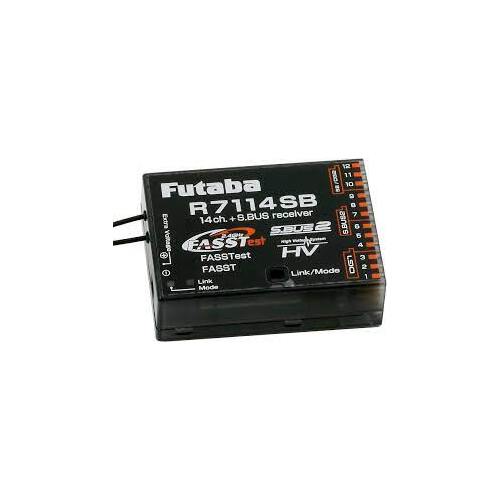

Futaba R7114SB 2.4GHz 14CH FASSTest/FASST Receiver

The R7114SB is Futaba's flagship receiver brimming with the specifications required in high end models. With 14 PWM channels its built to meet the demands of high-end modellers. For extra versatility the R7114SB is also capable of operating with FASST or FASSTest systems so it can be used with older transmitters or the latest telemetry enabled models. Using the built-in S.Bus technology it is capable of both S.BUS and S.BUS2 operation. The diversity aerials give the best possible signal and allow you to mount the aerials in different axis for the best reception available.

• 14 PWM channels
• High voltage (Up to 7.4V)
• FASST and FASSTest
• FASSTest telemetry capability
• S.BUS and S.BUS2 technology
• Diversity aerials
• Easy binding button
• Desgned for high-end models
• FASST Multi; normal mode or high speed mode

R7114SB Specifications
FASSTest-2.4GHz system(14CH/12CH mode)
FASST-2.4GHz system (Multi-ch mode)
S.BUS2 and S.BUS port and Linear 12 ch +Digital 2 ch for conventional system
receiver
• Dual antenna diversity
• Size: 1.5 x 2 x 0.6 in. (37.0x50.2x15.9mm)
• Weight: 0.7 oz. (20.8g)
• Power requirement: 3.7V to 7.4V (Voltage range: 3.5 to 8.4V)
• Battery F/S Voltage: FASSTest:It sets up with a transmitter
FASST: 3.8V *The Battery F/S voltage is set for 4-cell NiCd/NiMH battery.
Battery F/S function doesn't work properly when other type battery is used.
• Extra Voltage port: 0 ~ 70V DC
