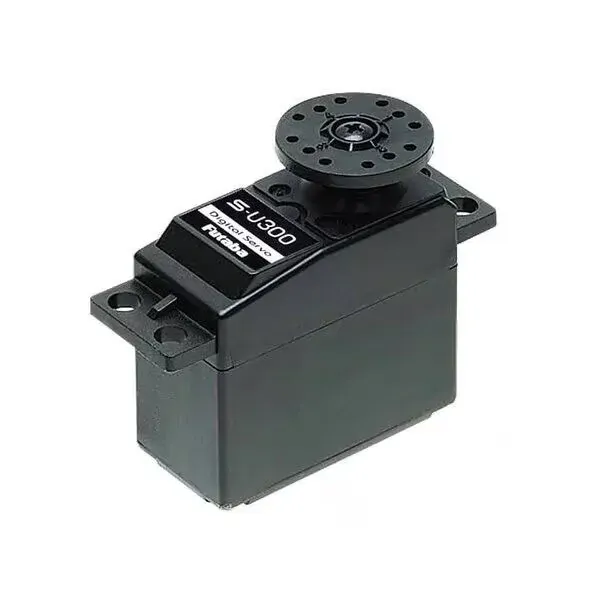

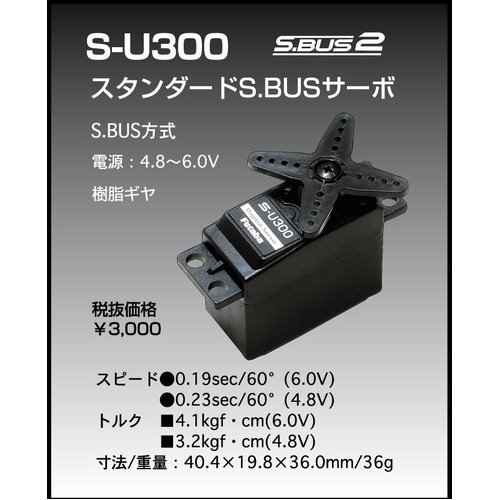

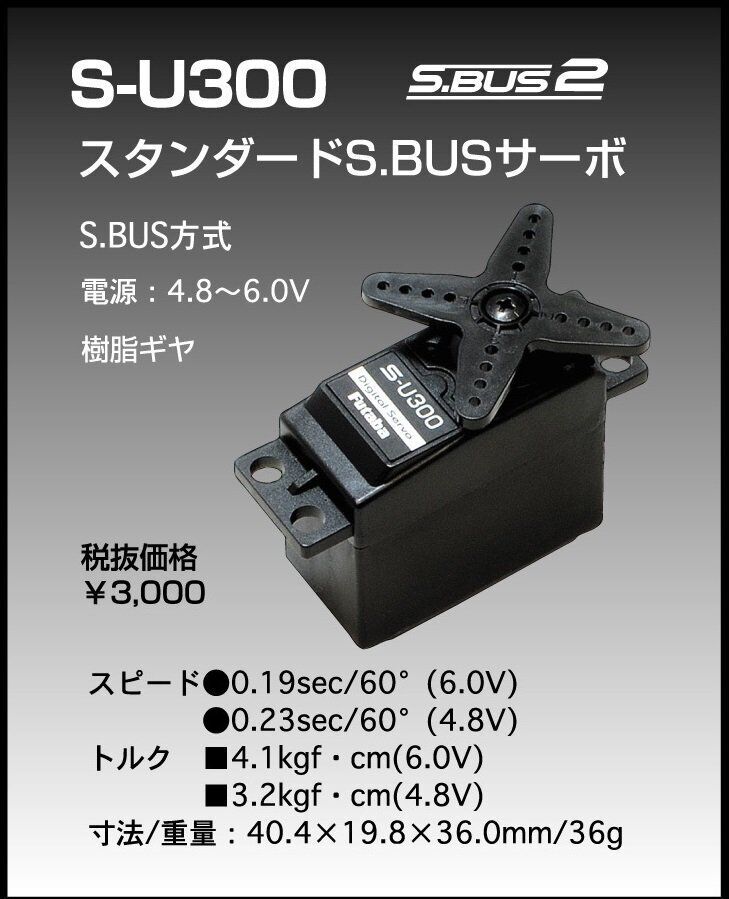

The Futaba S-U300 Standard Servo replaces older S3003 units while offering consistent response and build quality. Its plastic gear train keeps weight down and provides dependable service for regular track and off-road use.

Control Response and Power Ratings

Response is listed at 0.23 seconds per 60 deg at 4.8V and 0.19 seconds per 60 deg at 6.0V, providing timely steering and control adjustments. Torque outputs are 3.5 kgf.cm at 4.8V and 4.5 kgf.cm at 6.0V, adequate for many standard applications.

Form Factor and Voltage Range

Compactly sized at 40.4 x 19.8 x 36.0 mm and weighing 36 grams, the S-U300 easily mounts in tight bays. It runs from 4.8V up to 6.0V so it fits with typical receiver battery arrangements used in club racing and backyard fun.

SKU FUT05102671-1
Barcode # 4513886032059
Brand Futaba
