Hawk/T-45 140-160N Turbine Jet ARF Overview
Since entering service in the late 1970s, the Hawk-and its U.S. Navy variant, the T-45 Goshawk-has trained generations of military pilots worldwide. Hangar 9’s Hawk 140–160N Turbine Jet ARF model faithfully captures that legacy in a robust, pre-built package designed for today’s turbine sport and scale flyers. Crafted from lightweight balsa and plywood reinforced with carbon fiber, this ARF airframe arrives ready for your choice of 140–160N turbine engines (sold separately). A complete hardware kit, dual-wall stainless steel pipe and 5.5L fuel tank ensure you spend less time shopping for parts, and more time mastering precision passes, rolls and loops. Finished in the striking VT-7 “Betsy Ross” trim scheme, the Hangar 9 Hawk delivers an eye–catching presence both on the ground and in the air.
Hangar 9’s Hawk 140–160N sets a new standard for scale turbine ARF models. Based on the proven Systems Hawk airframe and adopted by the U.S. Navy as the T-45 Goshawk, this model blends authentic lines with modern materials to deliver a stable yet highly responsive flying experience. At the heart of the design is a factory-assembled airframe of carbon fiber–reinforced balsa and plywood. All control linkages are included, along with a comprehensive hardware pack including a composite 5.5 L fuel tank with aluminum magnetic fill and vent fittings, dual-wall stainless steel tail pipe, and assembly hardware.

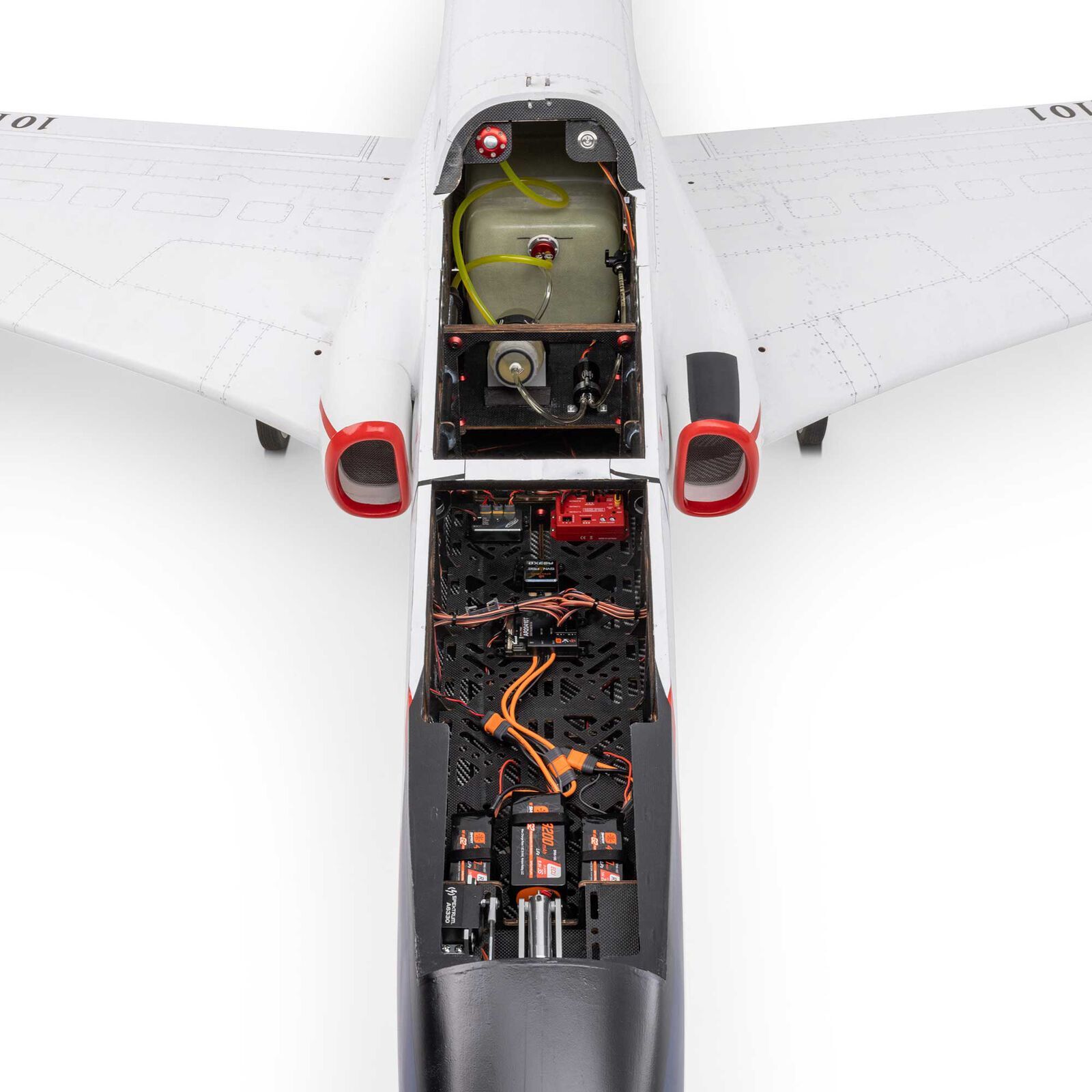

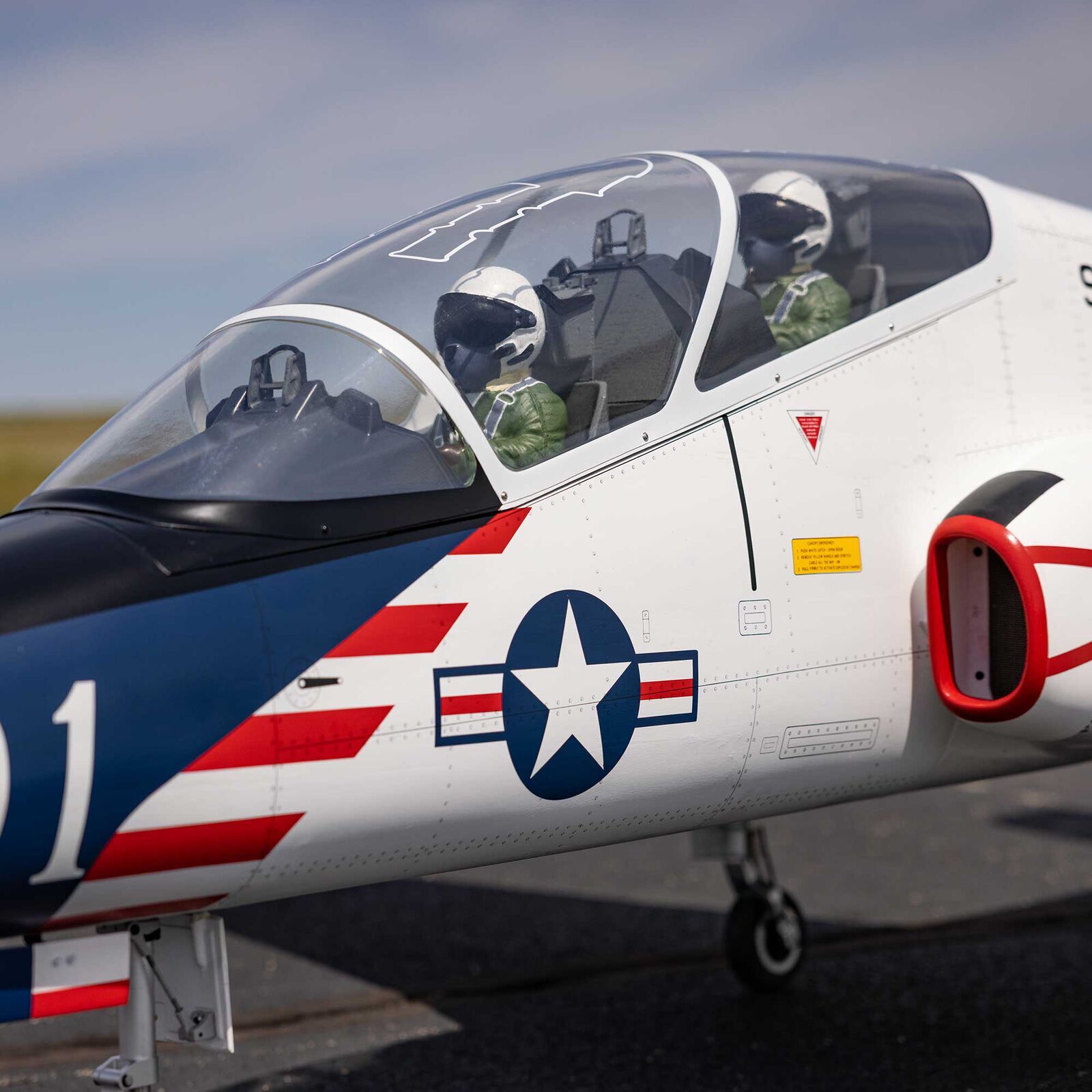

Large top hatches grant rapid access to the turbine, fuel system, and electronics. Scale enthusiasts will appreciate the printed VT-7 “Betsy Ross” factory-applied trim scheme with panel line, hatch, and rivet details. Inside, a detailed cockpit houses pilot figures, molded seats and a 3D instrument panel under a clear canopy.
The electric retract set (HAN13785) is equipped with precision aluminum trailing-link struts and electric brakes, which allow the Hawk to take off and land from paved surfaces, and most grass runways. The retract set includes a retract controller with adjustable brake strength, and a test function that allows retract operation without the transmitter. A complete set of gear doors with mounting hardware and linkages is also included.
To ease storage and protection, the two-piece wing, horizontal stabilizers, vertical stabilizer, and ventral fins can be removed with ease and stow safely in optional carrying bags (HAN1375018 and HAN1375019)The aircraft is light-ready, and suits various lighting options, including two Hawk-specific versions from uniLIGHT.
From its storied heritage to its turnkey hardware, the Hawk/T-45 140–160N Turbine Jet ARF invites turbine pilots to command the skies with scale realism and incredible field presence.
Product Details
In The Box
Hawk/T-45 140-160N ARF1
User Manual1

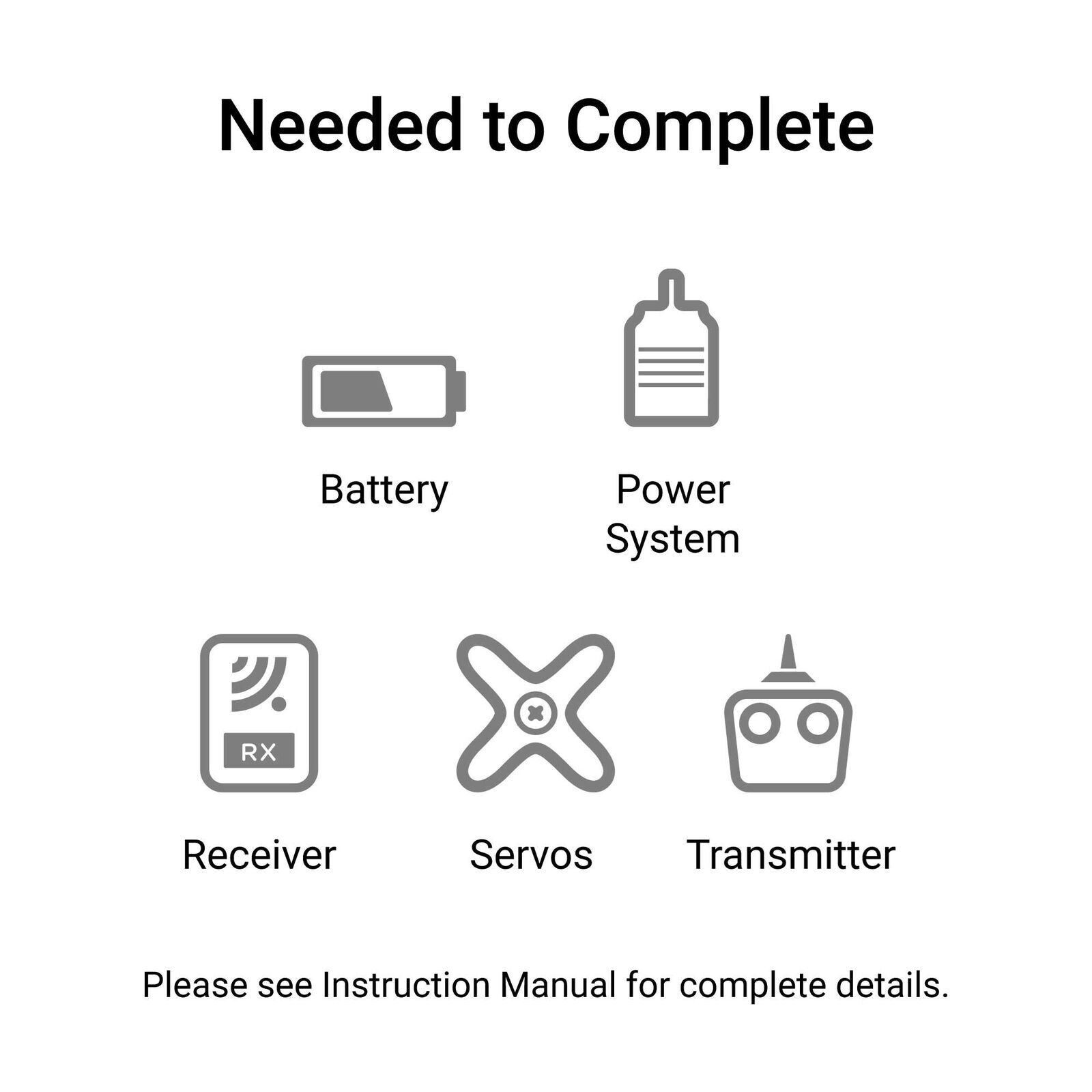

Needed to Complete
Retract Set1
20-Channel DSMX Transmitter1
KingTech K-160G4+ Turbine1
Spektrum A6300 servos7
Spektrum A6320 servo1
Spektrum AR20410T Receiver1
Synapse AS3X+ Module1
Spektrum 2S 4000mAh LiPo G2 receiver batteries2
Spektrum 3S 3200mAh LiFe ECU battery1
Spektrum Single-Sided 1.0” aluminum servo arms5
Spektrum Single-Sided 1.5” aluminum servo arms3
KingTech 150cc air trap1
Hawk/T-45 140-160N Turbine Jet ARF Features
- Designed for popular 140–160N turbine engines (turbine sold separately)
- Factory-assembled carbon fiber–reinforced balsa and plywood airframe
- Composite 5.5 L fuel tank with aluminum magnetic fill and vent fittings
- Dual-wall stainless steel tail pipe
- Two-piece removable wing and stabilizers, and vertical stabilizer for easy transport and setup
- Two large top-hatches for tool-free access to turbine, batteries and electronics
- Authentic VT-7 “Betsy Ross” printed PVC covering with scale rivets, panel lines and weathering details

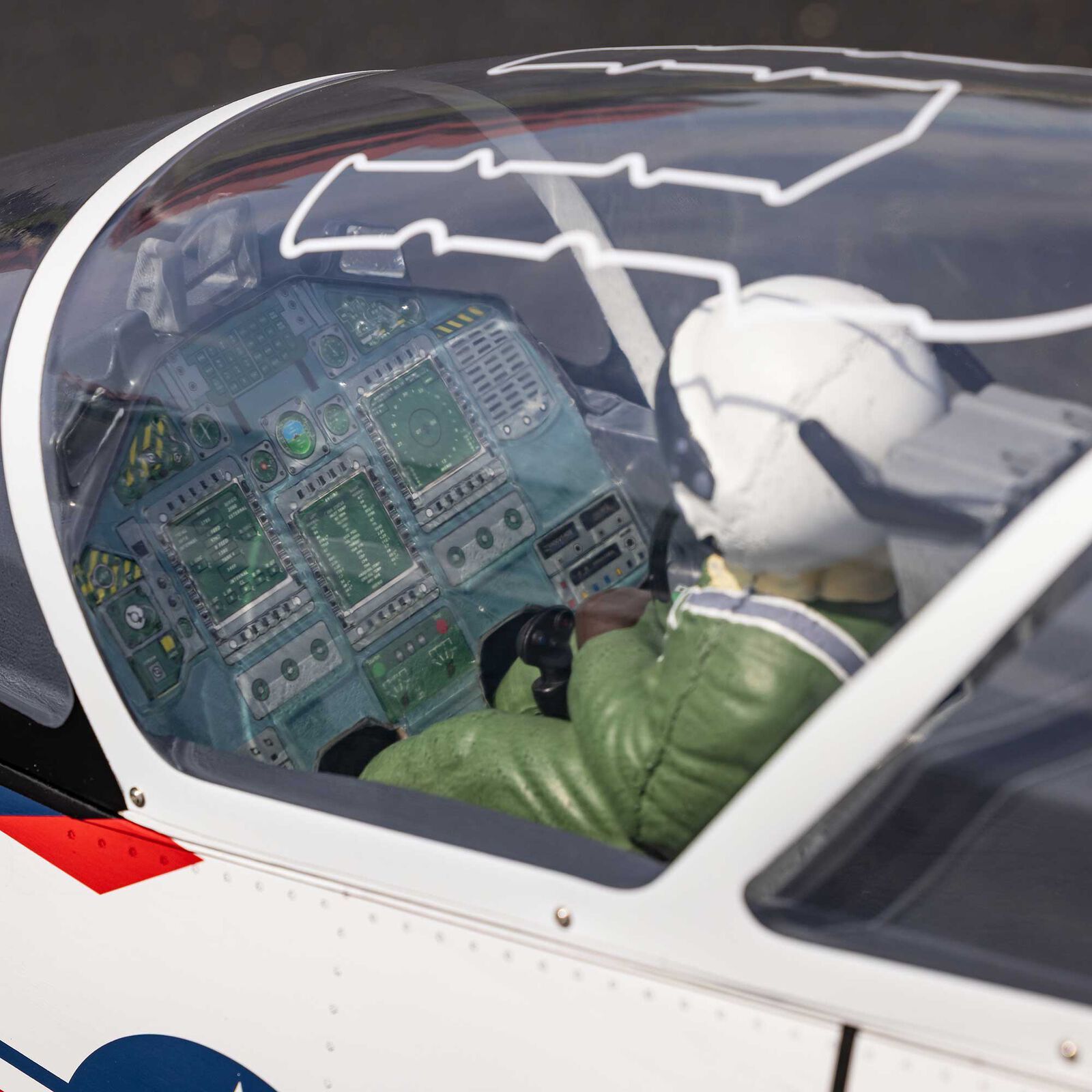

- Detailed cockpit with painted pilot figures and 3D instrument panel
- Electric retract set with aluminum trailing-link struts, electronic brakes and controller (HAN13785 sold separately)
- Complete gear door set with hardware and linkages
- Modular transport design: removable wings, stabilizers and ventral fins
- Light-ready airframe for optional LED lighting (not included)
140-160N TURBINE READY AIRFRAME
Weighing 40-44 lbs, the Hawk is perfectly paired with modern turbines from brands like Kingtech and JetCat in the 140-160N size range. The Kingtech K-142 and K-160 are what powered development and test airframes. Our preferred engine is the K-160 as it provides a great combination of power, performance, and flight time.
AUTHENTIC “BETSY ROSS” COVERING
The Hawk arrives wrapped in printed, self-adhesive PVC film replicating VT-7’s “Betsy Ross” flag scheme. Durable and precision cut, it delivers crisp panel lines, scale rivet details and weathering straight out of the box
Hawk/T-45 140-160N Turbine Jet ARF Product Specs
- Approximate Assembly Time60+ Hours
- Approximate Flight Time7-10 minutes
- Completion LevelAlmost Ready-To-Fly
- Engine Size140-160N Turbine
- FlapsYes
- Fuel Tank Capacity5.5 litres (186 fl. ozs)
- Minimum Required Radio16+ channel full-range
- Power TypeTurbine
- Product Length103.2" (2621 mm)
- Product WeightWeights without Gear Doors: Empty Weight with K-142G4+: 39.4 lbs (17.87 kg) Weight RTF with K-142G4+: 48.4 lbs (21.96 kg) Empty Weight with K-160G4+: 39.8 lbs (18.07 kg) Weight RTF with K-160G4+: 48.9 lbs (22.16 kg)
- RadioSold Separately
- ReceiverSold Separately
- RetractsSold Separately
- ServosSold Separately
- Skill LevelLevel 4
- Total WeightWeights with Gear Doors: Empty Weight with K-160G4+: 42.0 lbs (19.06 kg)
- Wingspan97" (2464 mm)
