Key Features

  • Outstanding flight performance: tried and true Ultra Stick design
  • Flaps for expanded flight envelope
  • Covered in genuine UltraCote™

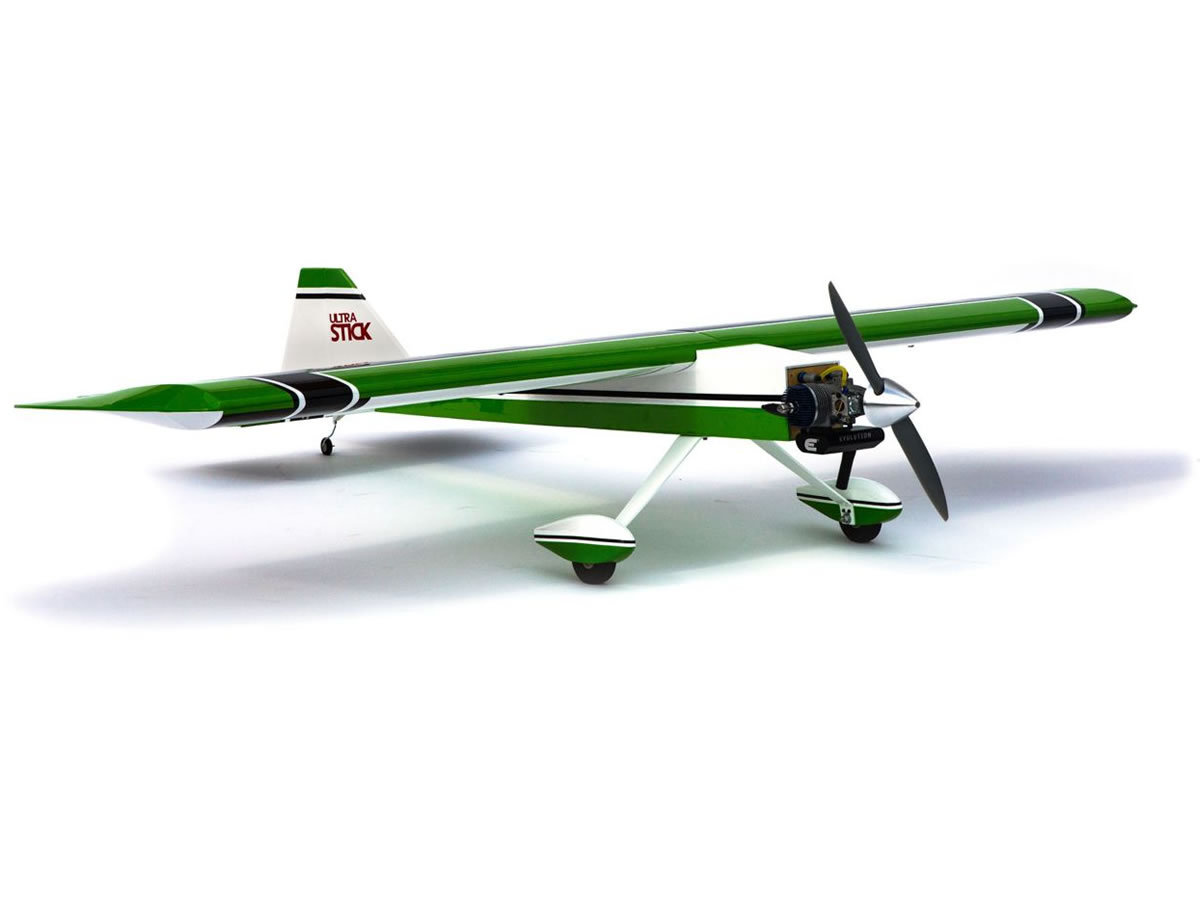

  • Tail dragger landing gear adds to its sportier looks
  • Large, double beveled control surfaces
  • Two piece plug in wings with aluminum tube provides easy transport and assembly
  • Lightweight balsa/balsa-plywood construction that's strong

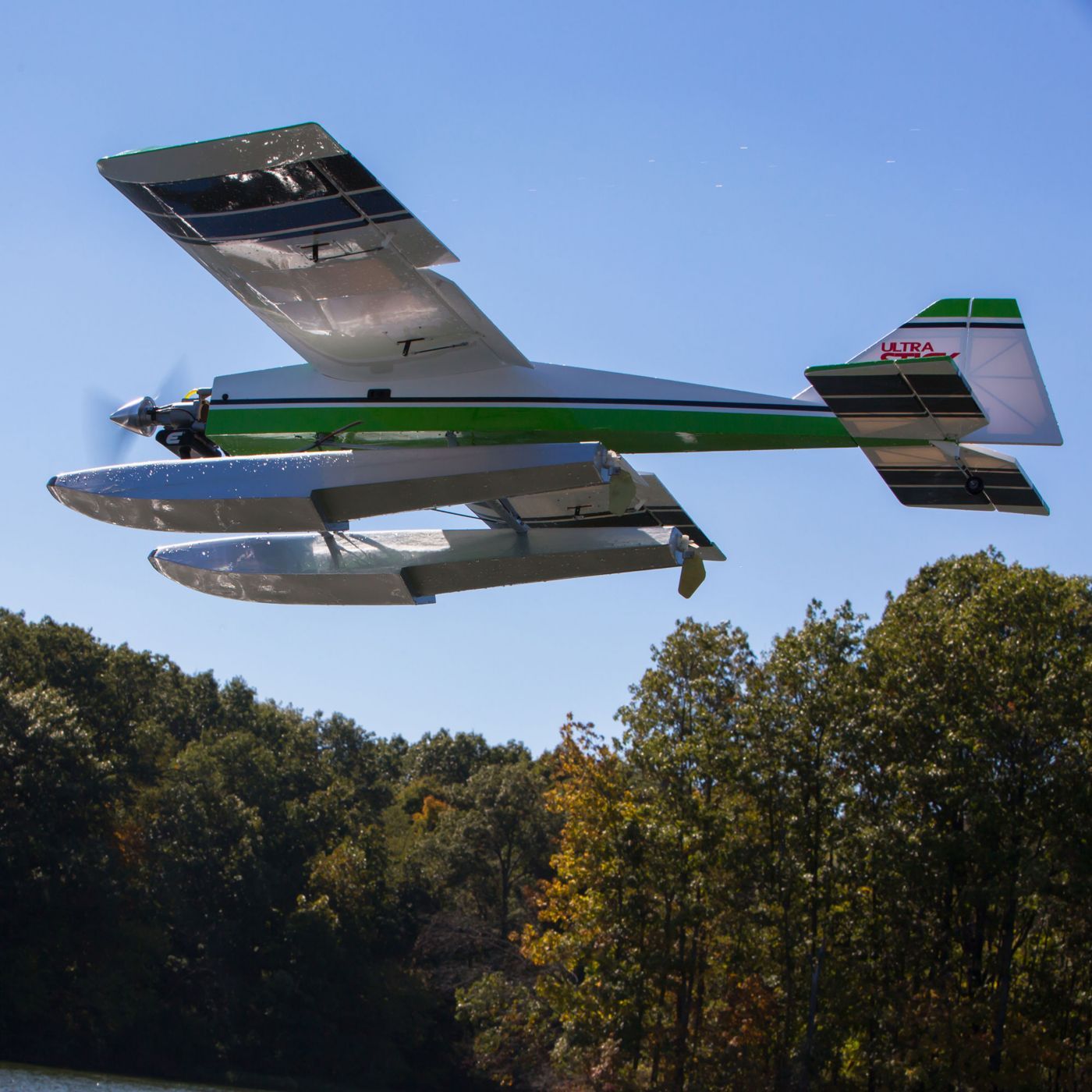

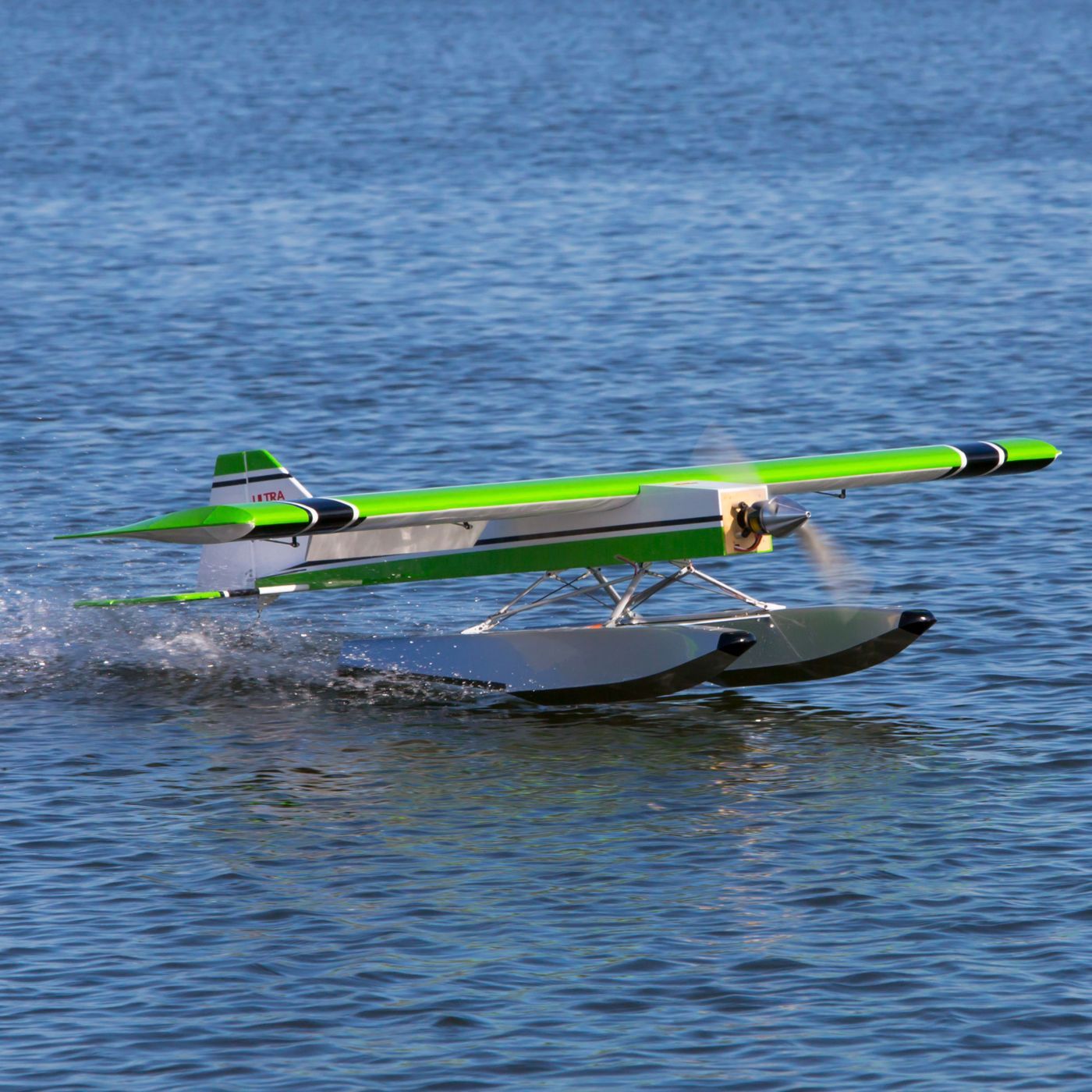

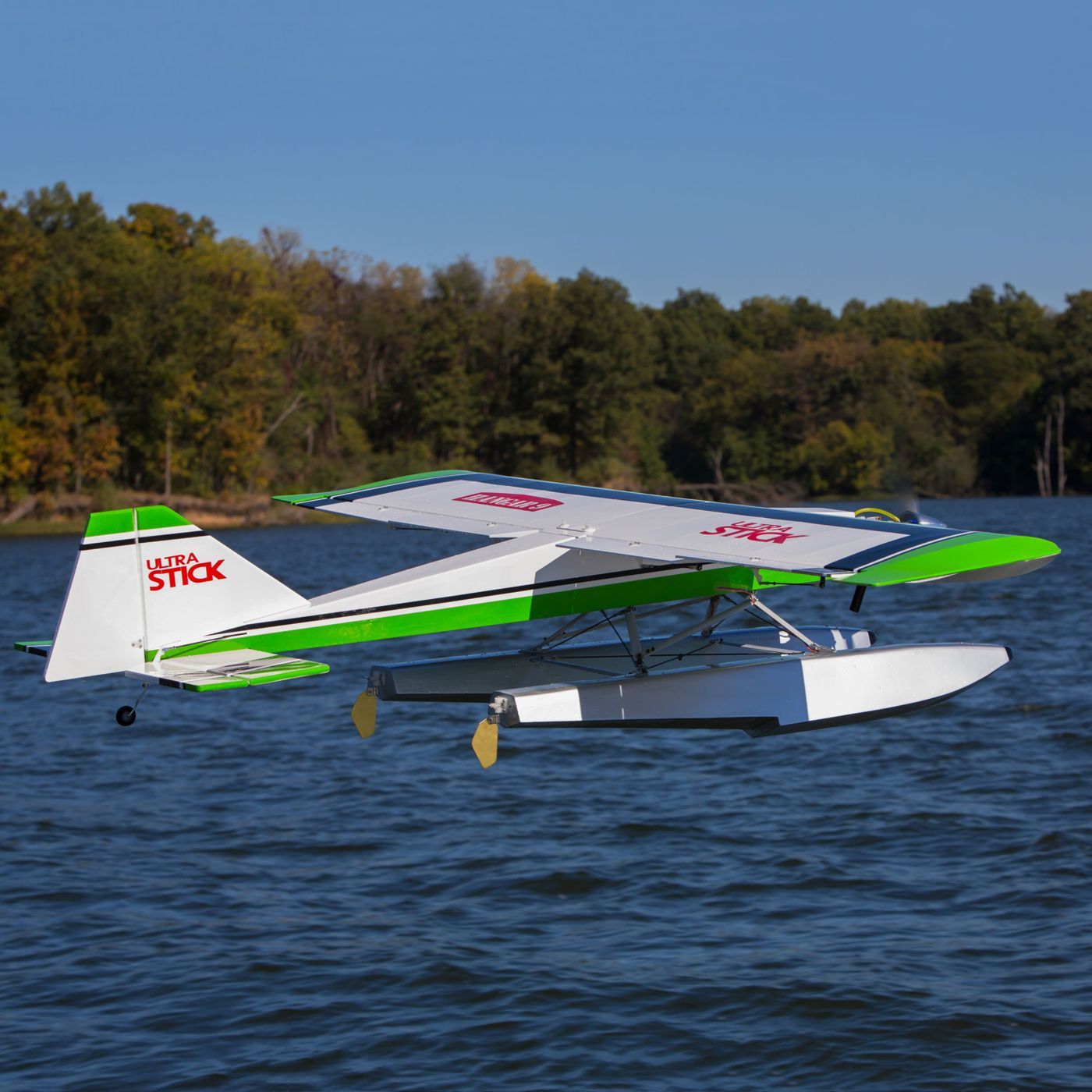

  • Float-ready-hard points for mounting the Hangar 9® 1/5-scale Float Set (sold separately) are already built into the fuselage

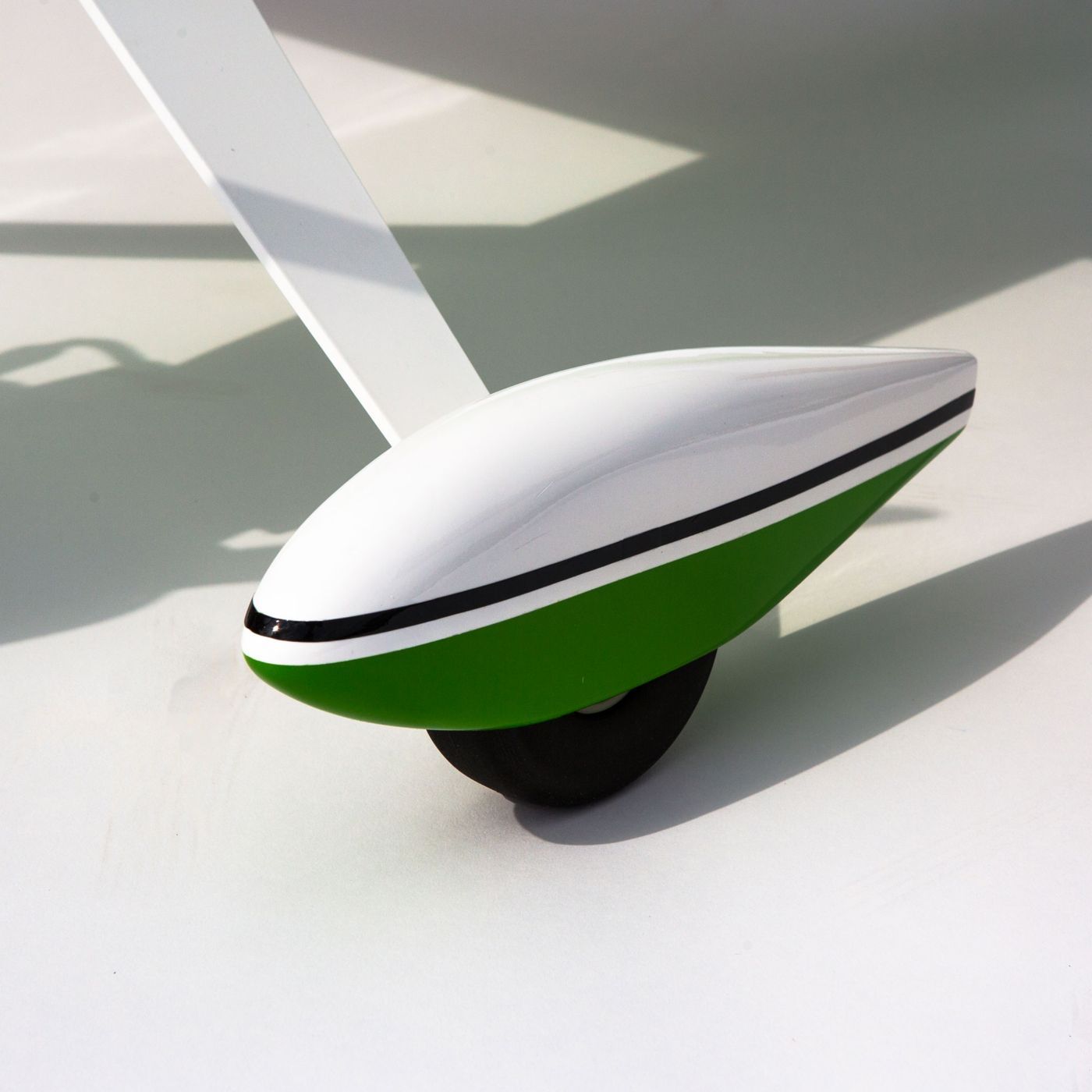

  • Finished fiberglass wheel pants match UltraCote colors

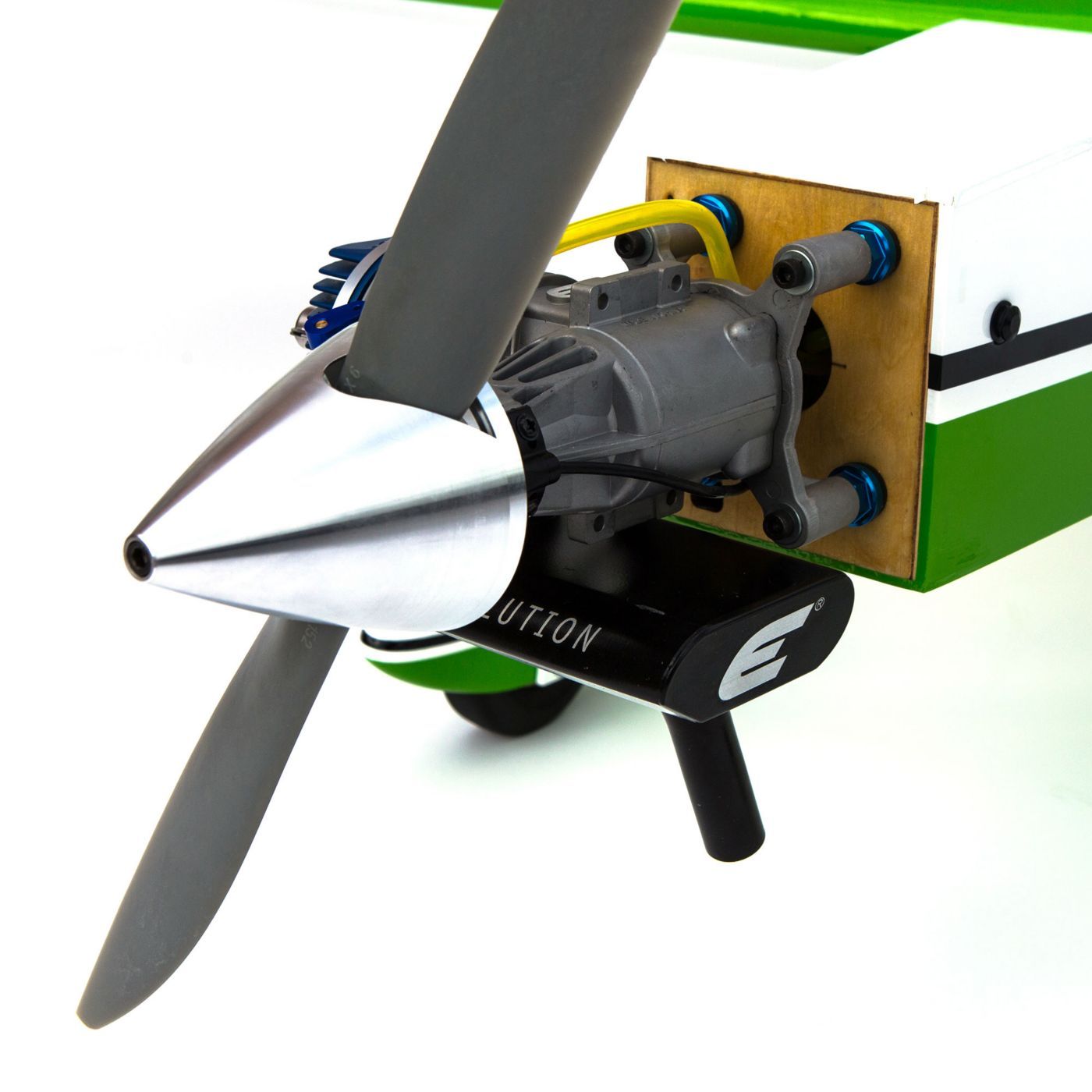

  • Ready to mount the Evolution® 33GX Gasoline Engine
  • Electric motor mount included makes it EP friendly
  • Complete quality hardware included



Airfoil Shape: Symmetrical
Approximate Assembly Time: 10-15 Hours
Approximate Flight Time: 6 Mins
CG (Center of Gravity): 4-5.25" Rearward of wing leading edge
Completion Level: Almost Ready-to-Fly
Control Throw (Flaps): 2.5mm Takeoff and 5.5cm Landing
Control Throw - High (Ailerons): 6.8 Cm Up and 5.5cm down
Control Throw - High (Elevator): 5.5cm Up and Down
Control Throw - High (Rudder): 7cm Left and Right
Control Throw - Low (Ailerons): 3cm Up and 2.5cm Down
Control Throw - Low (Elevator): 2.7cm Up and Down
Control Throw - Low (Rudder): 3.5cm Left and Right
Engine Size: 30cc
Expo (Ailerons): 25%
Expo (Elevator): 20%
Expo (Rudder): 20%
Flaps: Yes
Flying Weight: 12-14 lbs (5.4 - 6.35kg)
Length: 74" (188 cm)
Material: Balsa
Minimum Required Radio: 6ch
Minimum Speed Control: 80 amp
Motor Size: Power 160
Propeller Size: 17x6 - 18x10

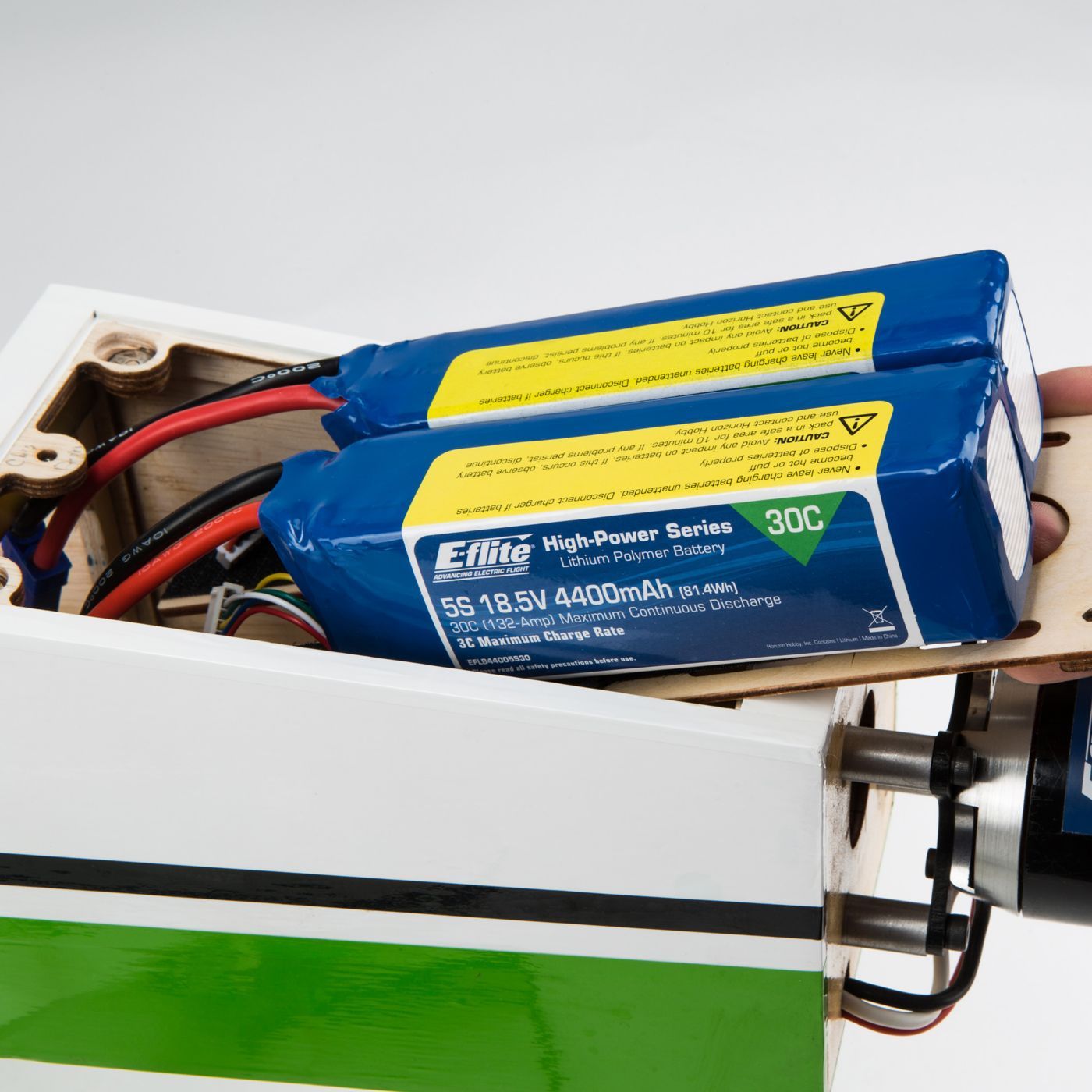

Recommended Motor Battery: 10S 4400mAh
Recommended Receiver Battery: 6.6V 2200mAh 2S LiFe Receiver Battery (not included)
Retracts: No
Servos: A6180 Digital Aircraft Servo (not included)
Spinner Size: 3"
Trimscheme Colors: White (HANU870), Black (HANU874), Apple Green (HANU903)
Wing Area: 1360.3 sq in (87.76 sq dm)
Wing Loading: 22.02oz./sq.ft.
Wing Tube Length: 65cm
Wing Tube OD: 31cm
Wingspan: 80.75" (205 cm )
SKU HAN2365
Barcode # HAN2365
Brand Hangar 9
Shipping Weight 5.0000kg
Shipping Width 1.480m
Shipping Height 0.290m
Shipping Length 0.550m
Shipping Cubic 0.236060000m3
