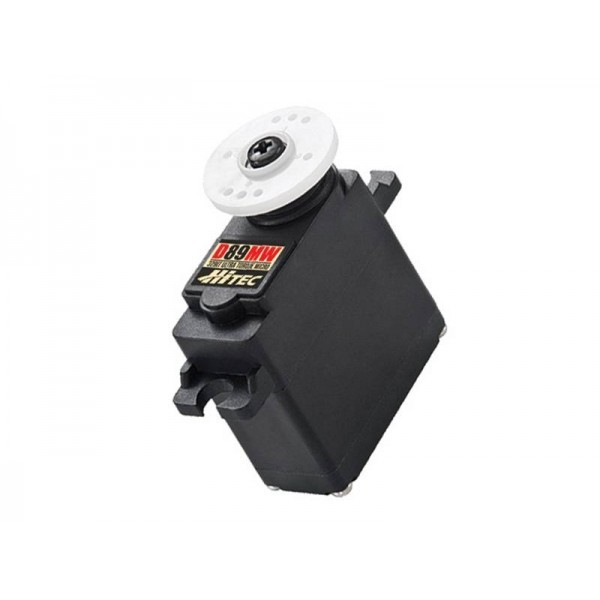

With 32-bit high resolution, ultra-response technology and wide voltage operation, the mighty micro-sized D89MW delivers solid power in a lightweight package. Its efficient coreless motor makes this mini servo a standout in its class.

Operating Voltage Range (Volts DC)
4.8V ~ 7.4V
Speed (Second @ 60°)
0.17 ~ 0.11
Maximum Torque Range oz. / in.
74 ~ 118
Maximum Torque Range kg. / cm.
5.3 ~ 8.5
Current Draw at Idle
30 mA
No Load Operating Current Draw
300 mA
Stall Current Draw
2,900 mA
Dimensions (Inches)
1.14 x 0.51 x 1.18
Dimensions (Metric)
29.0 x 13.0 x 30.0
Weight (Ounces)
0.88
Weight (Gram)
25
Circuit Type
32bit Programable Digital
Motor Type
Coreless Metal Brush
Gear Material
5 Metal Gears
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
25 / 6
Case Material
Plastic
SKU HRC36089
Barcode # 669962360890
Brand Hitec RCD
Shipping Weight 1.0000kg
