Overview

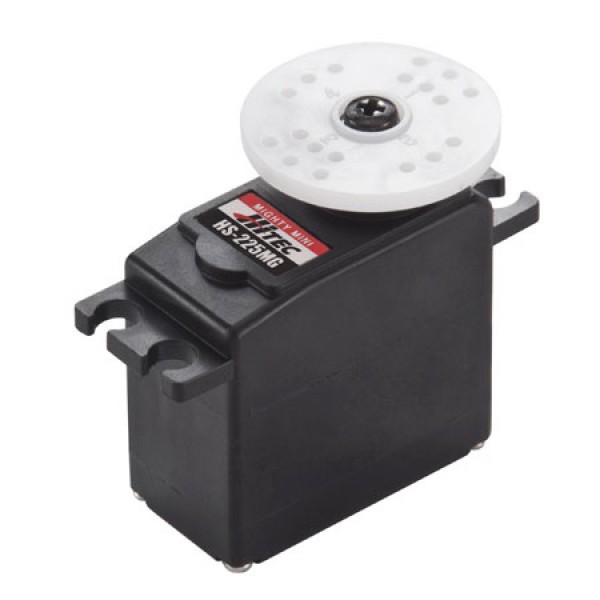

Hitec's HS-225MG Metal Gear Mighty Mini Servo
Features
  • Small, Lightweight, High Speed, and High Torque Servo
  • Top Ball Bearing
  • SMT Technology
The analog HS-225 series represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology. - (HTHS-225MG)

Specs

Size Category
Minis and Micros
Type
Analog
Application Aircraft up to 10 lbs, steering for 1/12th, 1/10th on-road cars, fast electric boats
Torque 54.2 oz-in (3.9kg-cm) @ 4.8V; 66.7 oz-in (4.8kg-cm) @ 6V
Speed 0.14 sec/60 deg @ 4.8V; 0.11 sec/60 deg @ 6V, at no load
Length .27 in (32.4mm)
Width 0.66 in (16.8mm)
Height 1.22 in (31.0mm)
Weight 1.09 oz (31.0g)
Bushing Or Bearing Bearing
Bearing Single
Motor Type3 Pole
Connector Type Universal
Gear Type Metal
Current Draw Idle8mA
Voltage 4.8V to 6.0V
Deadband 8µs
Size Category
Minis and Micros
Type
Analog
Application
Aircraft up to 10 lbs, steering for 1/12th, 1/10th on-road cars, fast electric boats
Torque
54.2 oz-in (3.9kg-cm) @ 4.8V; 66.7 oz-in (4.8kg-cm) @ 6V
Speed
0.14 sec/60 deg @ 4.8V; 0.11 sec/60 deg @ 6V, at no load
Length
1.27 in (32.4mm)
Width
0.66 in (16.8mm)
Height
1.22 in (31.0mm)
Weight
1.09 oz (31.0g)
Bushing Or Bearing
Bearing
Bearing
Single
Motor Type
3 Pole
Connector Type
Universal
Gear Type
Metal
Current Draw Idle
8mA
Voltage
4.8V to 6.0V
Deadband
8µs
SKU HRC32225S
Barcode # 669962320122
Brand Hitec RCD
Shipping Weight 0.0500kg
