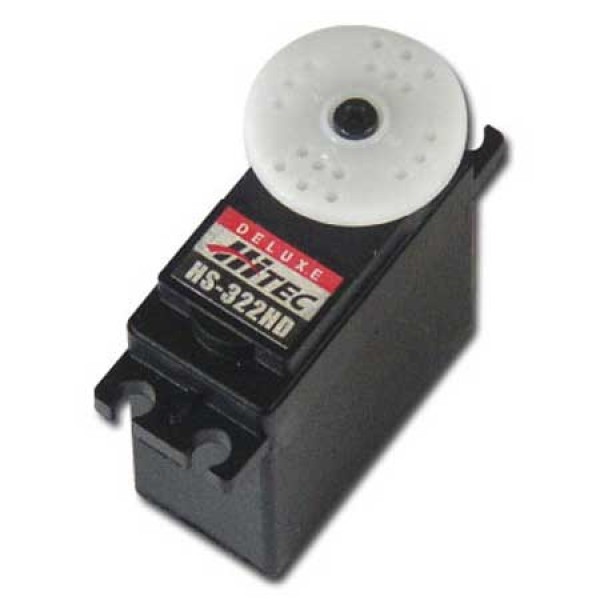

The HS-322HD Standard Heavy Duty Servo utilizes Hitec’s revolutionary Karbonite gear train which is four times stronger than the standard white nylon gears. Even after hundreds of thousands of cycles they don’t show any signs of wear. Karbonite gears and a custom IC makes the HS-322HD a great choice for an economical sport servo.

- (HTHS-322HD)

  • Karbonite Gear Train
  • Custom IC
Size Category
Standard
Type
Analog
Application
Standard sized aircraft and sailplanes
Torque
41.7 oz-in (3.0kg-cm) @ 4.8V; 51.38 oz-in (3.7kg-cm) @ 6V
Speed
0.19 sec/60 deg @ 4.8V; 0.15 sec/60 deg @ 6V, at no load
Length
1.57 in (40.0mm)
Width
0.78 in (20.0mm)
Height
1.43 in (36.5mm)
Weight
1.51 oz (43.0g)
Bushing Or Bearing
Bushing
Motor Type
3 Pole
Connector Type
Universal
Gear Material
Karbonite
Current Draw Idle
7.4mA @ 4.8V; 7.7mA @ 6V
Voltage
4.8V to 6.0V
Deadband
5µs
SKU HRC33322S
Barcode # 669962330022
Brand Hitec RCD
Shipping Weight 0.0500kg
