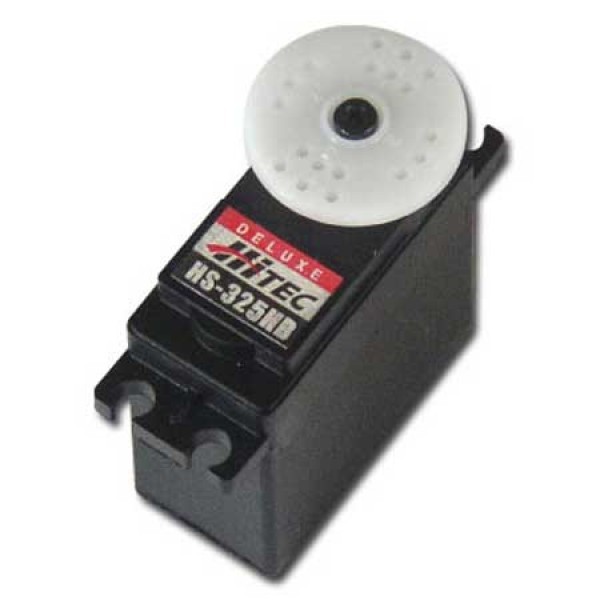

The HS-325HB Standard Heavy Duty Servo features a ball bearing output shaft for long life and positive centering. Hitec’s HS-325HB is offered with Karbonite gears, that after hundreds of thousands of cycles won’t show any signs of wear. With 49 oz-in of torque at 6 Volts, the 325HB is a great choice for Sport pilots all over the World!

Applications: Heli's and Aircraft up to 72” or up to 12lbs when using just one servo per control surface.

Note: Be aware that high vibration gas (not glow) engines combined with large contol surfaces and large thows (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.

Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.

- (HTHS-325HB)

  • Ball Bearing Output Shaft
  • Karbonite Gears
  • *** Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.
Size Category
Standard
Type
Analog
Application
20-40 Size Aircraft, Steering and Throttle for Cars, Trucks, and Boats
Torque
41.7 oz-in (3.0kg-cm) @ 4.8V; 51.4 oz-in (3.7kg-cm) @ 6V
Speed
0.19 sec/60 deg @ 4.8V; 0.15 sec/60 deg @ 6V, at no load
Length
1.57 in (40.0mm)
Width
0.78 in (20.0mm)
Height
1.43 in (36.5mm)
Weight
1.51 oz (43.0g)
Bushing Or Bearing
Bearing
Bearing
Single
Motor Type
3 Pole
Connector Type
Universal
Gear Material
Karbonite
Current Draw Idle
7.4mA @ 4.8V; 7.7mA @ 6V
Current Draw Stall
700mA @ 7.4V; 800mA @ 6V
Voltage
4.8V to 6.0V
Deadband
5µs
SKU HRC33325S
Barcode # 669962330046
Brand Hitec RCD
Shipping Weight 0.0500kg
