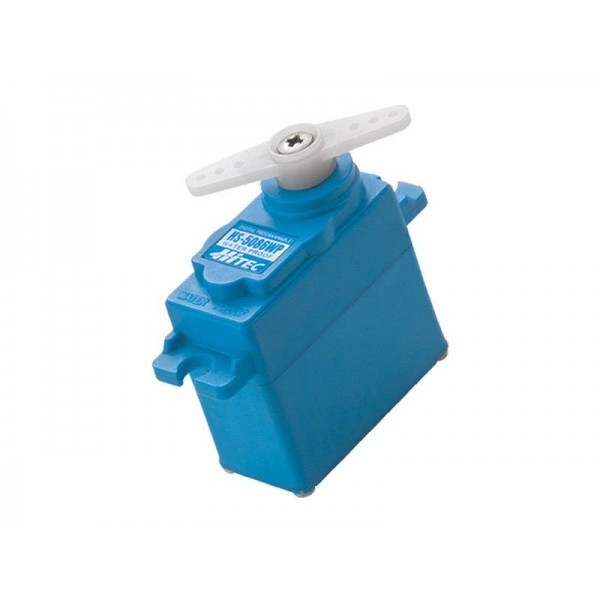

The HS-5086WP is the smallest in Hitec's class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as our popular HS-85MG and the industry's first IP67*rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings.

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset
  • Metal Gear with MP First Gear
  • Top Ball Bearings
  • 3Pole Cored Ferrite Motor
  • Industry's First IP67Rated Waterproof Case
  • * IP = International Protection Code | 6 = Dust Tight | 7 = Immersion up to 1M
  • Programmable Circuit
Operating Voltage Range (Volts DC)
4.8V ~ 6.0V
Speed (Second @ 60°)
0.18 ~ 0.15
Maximum Torque Range oz. / in.
42 ~ 50
Maximum Torque Range kg. / cm.
3.0 ~ 3.6
Current Draw at Idle
3 mA
No Load Operating Current Draw
280 mA
Stall Current Draw
1,800 mA
Dead Band Width
2 µs
Dimensions (Metric)
31.0 x 15.2 x 31.0
Weight (Gram)
28.5
Circuit Type
G1 Programable Digital
Motor Type
3 Pole Metal Brush Ferrite
Gear Material
Metal
Bearing Type
Top Ball Bearing
Output Shaft (type / Ømm)
Standard 24
Case Material
Plastic
Dust / Water Resistance
IP 67
Connector Gauge (AWG) / Strand Count
25 / 40
SKU HRC35086S
Barcode # 669962350860
Brand Hitec RCD
Shipping Weight 0.0500kg
