Features
  • Programmable Digital Circuit
  • Karbonite Gear Technology
  • Note: Be aware that high vibration gas (not glow) engines combined with large control surfaces and large throws (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.
  • *** Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.

The HS-5455HB is an excellent choice for sport airplanes up to .60 size . Featuring a programmable digital circuit and our Karbonite™ gear technology that offers four times the strength as our standard nylon gears and after hundreds of thousands of cycles won’t show any signs of wear.




Applications: Heli's and Aircraft up to 72” or up to 12lbs when using just one servo per control surface.

Note: Be aware that high vibration gas (not glow) engines combined with large control surfaces and large throws (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.

Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.

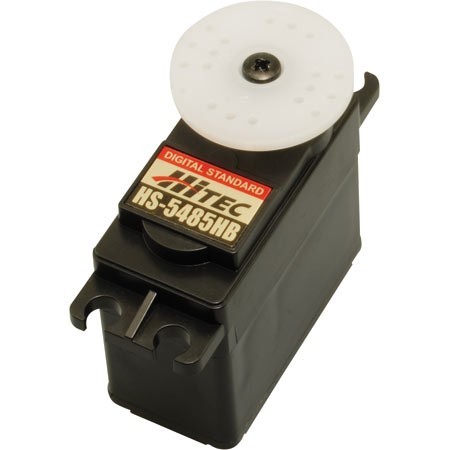

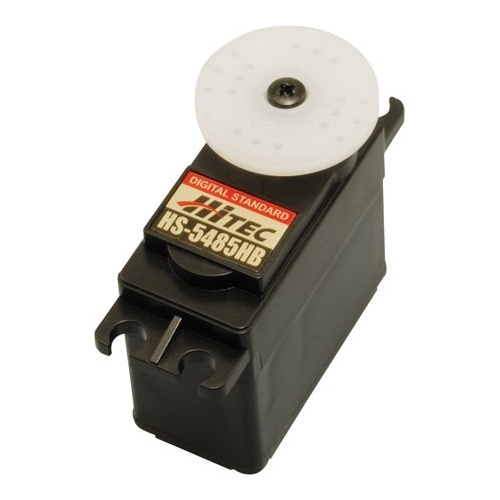

- (HTHS-5485HB)
Size Category
Standard
Type
Digital
Torque
72 oz/in @ 4.8V, 89 oz/in 6V
Speed
.20 sec/60 deg @ 4.8V, 0.17 sec/60 deg @ 6V
Weight
1.59 oz
Bushing Or Bearing
Bearing
Bearing
Single
Motor Type
3-Pole
Gear Type
Metal
Gear Material
Karbonite
Brand
Hitec
SKU HRC35485S
Barcode # 669962354851
Brand Hitec RCD
Shipping Weight 0.2000kg
