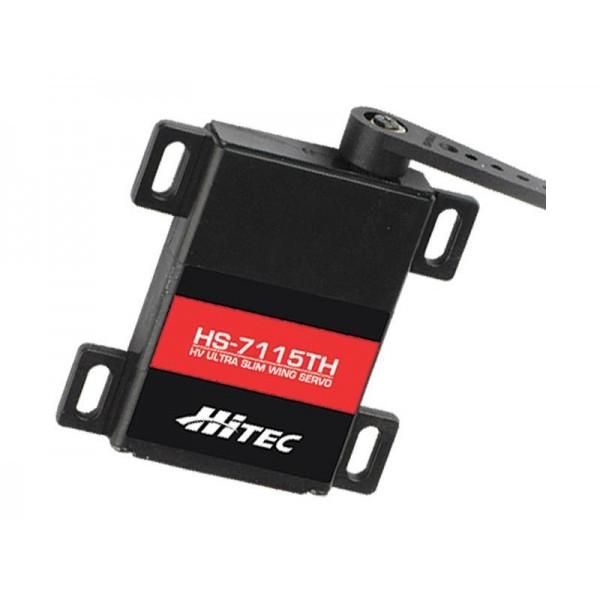

You can never be too rich or too thin! That's our philosophy with our new HS-7115TH Slim Wing servo: rich engineering in a thin design! The HS-7115TH will fulfill every pilot's dream when it comes to flying slim-wing aircraft. With its efficient, powerful three pole, metal-brushed motor and mighty titanium gear train, this servo brings the ultimate in high performance to your sailplanes, pylon racers and smaller scale models. The extremely thin, 8mm case with included mounting bracket allows it to fit into the tightest wings and most compact spaces. Constructed with dual ball bearings, the high voltage HS-7115TH provides an impressive 50 oz-in of torque at 7.4 volts.

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Overload Protection
  • Resolution
  • Data Save / Load
  • Program Reset
  • Slim 8mm Design Fits in the Thinnest Wings
  • Strong ThreePole Ferrite Motor
  • Durable Titanium Gears
  • Dual Ball Bearing
  • 7.4v 2Cell LiPo Capability
  • G2 Fully Programmable Digital Circuitry
Operating Voltage Range (Volts DC)
6.0V ~ 7.4V
Speed (Second @ 60°)
0.12 ~ 0.10
Maximum Torque Range oz. / in.
44 ~ 54
Maximum Torque Range kg. / cm.
3.2 ~ 3.9
Current Draw at Idle
10 mA
No Load Operating Current Draw
130 mA
Stall Current Draw
1,500 mA
Dead Band Width
1 µs
Dimensions (Metric)
26.0 x 8.0 x 38.0
Weight (Gram)
20
Circuit Type
G2 Programable Digital
Motor Type
3 Pole Metal Brush Ferrite
Gear Material
Titanium
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
Feather 15
Case Material
Plastic
Dust / Water Resistance
N / A
Connector Gauge (AWG) / Strand Count
22 / 40
SKU HRC37115
Brand Hitec RCD
