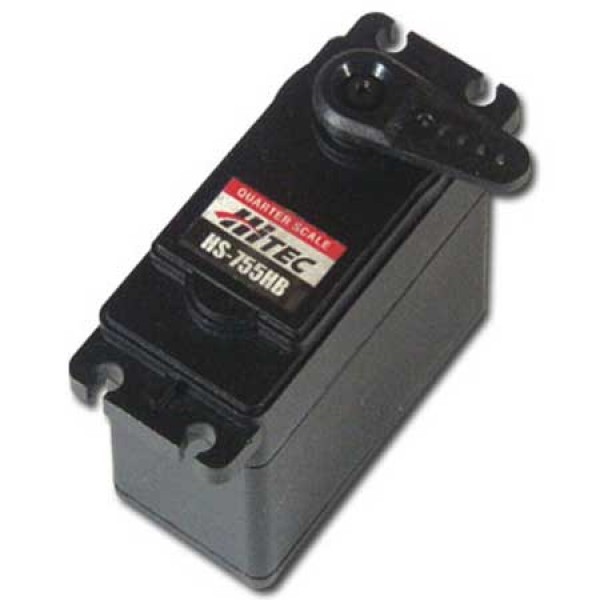

Hitec’s expansive line-up of servos includes the HS-755HB “giant scale” servos offered with either the revolutionary Karbonite gears or metal gears (HRC32755S). Both are perfect for larger R/C applications and feature dual ball-bearings with a water and dust resistant case. The powerful HS-755HB 183 oz-in of torque at 6 volts. - (HTHS-755HB)

  • Offered with Karbonite gears or Metal gears
  • Dual Ball-Bearings
  • *** Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail
Type
Analog
Application
1/4 Size Models
Torque
152.8 oz-in (11.0kg-cm) @ 4.8V; 183.3 oz-in (13.2kg-cm) @ 6V
Speed
0.28 sec/60 deg @ 4.8V; 0.23 sec/60 deg @ 6V, at no load
Length
2.32 in (59.0mm)
Width
1.14 in (29.0mm)
Height
1.97 in (50.0mm)
Weight
3.88 oz (110g)
Bushing Or Bearing
Bearing
Bearing
Dual
Motor Type
3 Pole
Connector Type
Universal
Gear Material
Karbonite
Current Draw Idle
8mA
Current Draw Stall
1500mA @ 4.8V; 1800mA @ 6V
Voltage
4.8V to 6.0V
Deadband
5µs
SKU HRC33755S
Barcode # 669962330114
Brand Hitec RCD
Shipping Weight 0.0500kg
