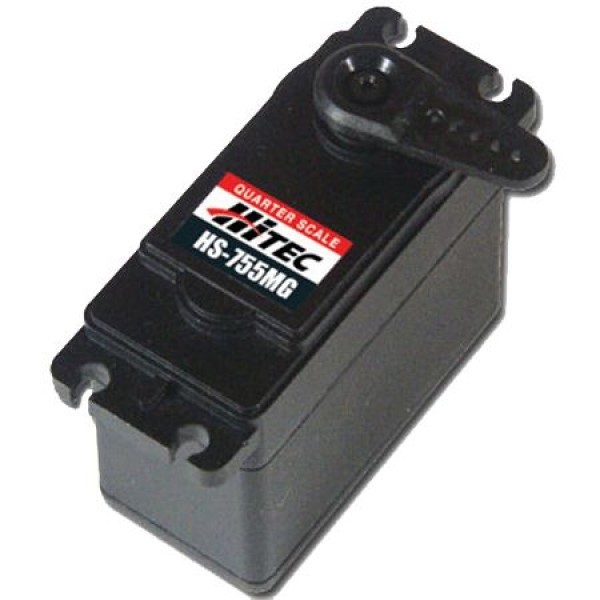

The HS-755MG “giant scale” servo is offered with either the revolutionary Karbonite gears (HRC33755S) or metal gears. Both are perfect for larger R/C applications and feature dual ball bearings with a water and dust resistant case. The powerful HS-755MG delivers a whopping 200 oz-in of torque at 6 volts. - (HTHS-755MG)
  • Dual Ball-Bearings
  • Water and dust resistant case
Type
Analog
Application
Large Models
Torque
166.6 oz-in (12.0kg-cm) @ 4.8V; 200.0 oz-in (14.4kg-cm) @ 6V
Speed
0.28 sec/60 deg @ 4.8V; 0.23 sec/60 deg @ 6V, at no load
Length
2.33 in (59.0mm)
Width
1.14 in (29.0mm)
Height
1.97 in (50.0mm)
Weight
4.12 oz (117g)
Bushing Or Bearing
Bearing
Bearing
Dual
Motor Type
3 Pole
Connector Type
Universal
Gear Type
Metal
Current Draw Idle
8mA
Current Draw Stall
1500mA @ 4.8V; 1800mA @ 6.0V
Voltage
4.8V to 6.0V
Deadband
5µs
SKU HRC32755S
Brand Hitec RCD
