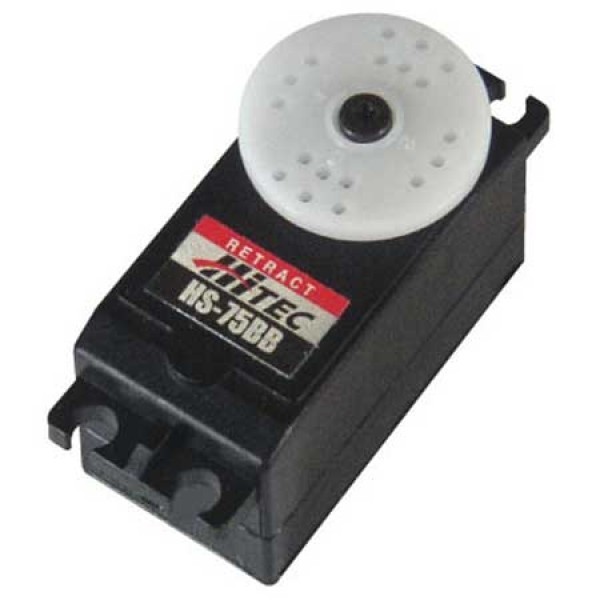

With its low profile design, strong torque and precision movement, the HS-75BB is a great choice to move your retract gear in a realistic manner that you need. Note, this is a retract or “bang bang” servo and only travels from one end to the other (180 degrees). If you require a proportional servo this size, use the Hitec HS-77BB (HRC31077S). - (HTHS-75BB)

  • Low Profile, Strong Torque, and Precision Movement
  • *** Note: This is a retract servo and only travels from one end to the other
Size Category
Specialty
Type
Analog
Application
Aircraft
Torque
91.65 oz-in (6.6 kg-cm) @ 4.8V; 113.87 oz-in (8.2 kg-cm) @ 6V
Speed
0.45 sec/60 deg @ 4.8V; 0.34 sec/60 deg @ 6V, at no load
Length
1.73 in (44.0mm)
Width
0.90 in (23.0mm)
Height
0.98 in (25.0mm)
Weight
1.23 oz (35.0g)
Bushing Or Bearing
Bearing
Bearing
Single
Motor Type
3 Pole
Connector Type
Universal
Gear Type
Nylon
Current Draw Idle
1mA @ 4.8V; 1.6mA @ 6.0V
Voltage
4.8V to 6.0V
Deadband
20µs
SKU HRC31075S
Barcode # 669962310093
Brand Hitec RCD
Shipping Weight 0.0500kg
