Hitec HS-765HD Quarter Scale. Sail Servo. Karbonite Gears. Dual Ball Bearin HRC33765S

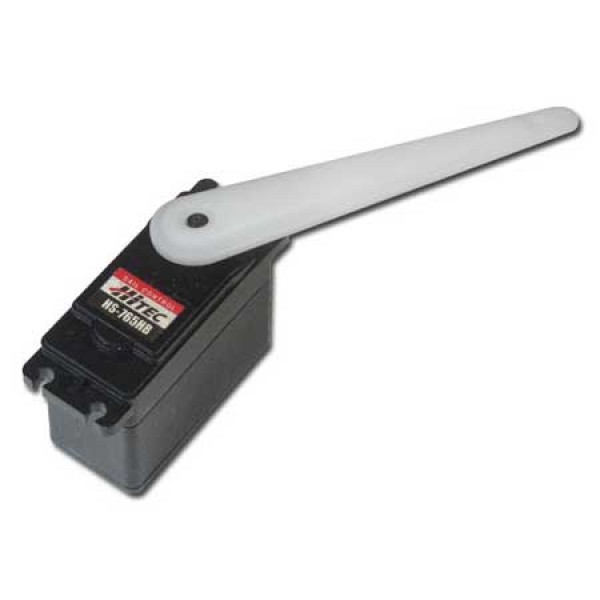

More infoThe HS-765HB sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 4.5 inch arm. With its dual ball bearing supported output shaft the HS-765HB will provide years of reliable service for your R/C sailing applications to 2 meters.
- (HTHS-765HB)
(HRC33765S)
- Up to 140 degrees of travel
- 4.5 inch arm
- Dual Ball Bearing Supported Output Shaft
- *** Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail
- Size Category
- Specialty
- Type
- Analog
- Application
- Sailing
- Torque
- 153 oz-in (11.0kg-cm) @ 4.8V; 183 oz-in (13.2kg-cm) @ 6V
- Speed
- 0.28 sec/60 deg @ 4.8V; 0.23 sec/60 deg @ 6V, at no load
- Length
- 2.32 in (59.0mm)
- Width
- 1.14 in (29.0mm)
- Height
- 1.97 in (50.0mm)
- Weight
- 3.88 oz (110g)
- Bushing Or Bearing
- Bearing
- Bearing
- Dual
- Motor Type
- 3 Pole
- Connector Type
- Universal
- Gear Material
- Karbonite
- Current Draw Idle
- 8mA
- Current Draw Stall
- 1500mA @ 4.8V; 1800mA @ 6V
- Voltage
- 4.8V to 6.0V
- Deadband
- 5µs
| SKU | HRC33765S |
| Barcode # | 669962330145 |
| Brand | Hitec RCD |
| Shipping Weight | 0.0200kg |
