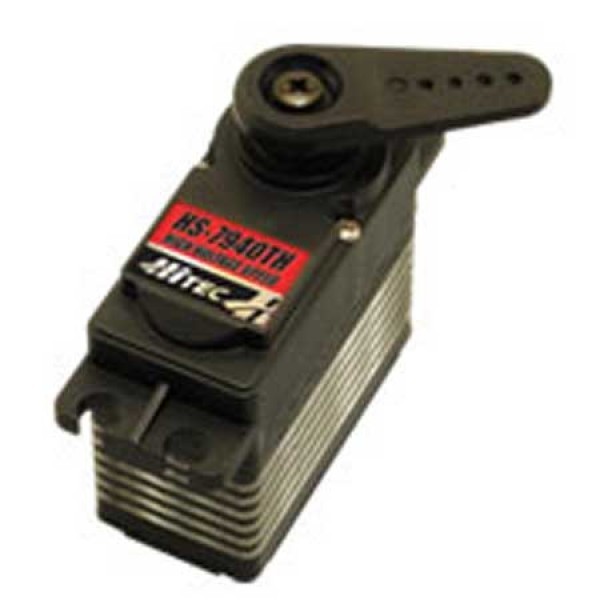

Hitec's fastest standard size servo the "Ultra Speed" HS-7940TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution "G2" second generation programmable digital circuit and our indestructible Titanium gears, The HS-7940TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7040TH include a 7.4v optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.

The HS-7940TH has been designed for applications where speed and response is demanded. Perfect for High Performance Nitro and Electric Helicopters, Aircraft, Cars, and Trucks. Featuring a blistering transit time of .07sec but still maintaining a respectable 183 in/oz of torque at 6.0 volts.

Due June 2009

- (HTHS-7940TH)
  • G2 Digital Circuit
  • Titanium Gear Train (MK first gear)
  • Ultra Performance Coreless Motor
  • Heatsink Case
  • (8) O-Rings for Water/Dust/Fuel protection
  • Dual Ball Bearing Supported Output Shaft
  • *** Programmable Features Include: ***
  • Dead Band Width
  • Direction of Rotation
  • Speed of Rotation (slower)
  • End Points
  • Neutral Points
  • Fail Safe On/Off
  • Fail Safe Point
  • Resolution* (default is high resolution)
  • Overload Protection* (default is off)
  • *These features are only programable with the HFP-20 (#44430), HPP-20 or HPP-21 (#44440) programmers.
Size Category
Standard
Type
Digital
Application
High Performance Nitro and Electric Helicoptors, Aircraft, Cars, and Trucks
Torque
181 oz/in @ 6V, 222 oz/in @ 7.4V
Speed
0.07 sec/60 deg. @ 6V, 0.06 sec/60 deg. @ 7.4V
Length
1.57 in (40mm)
Width
0.79 in (20mm)
Height
1.50 in (38mm)
Weight
2.40 oz (68 g)
Bushing Or Bearing
Bearing
Bearing
Dual
Motor Type
Coreless
Gear Type
Metal
Gear Material
Titanium
SKU HRC37940S
Brand Hitec RCD
