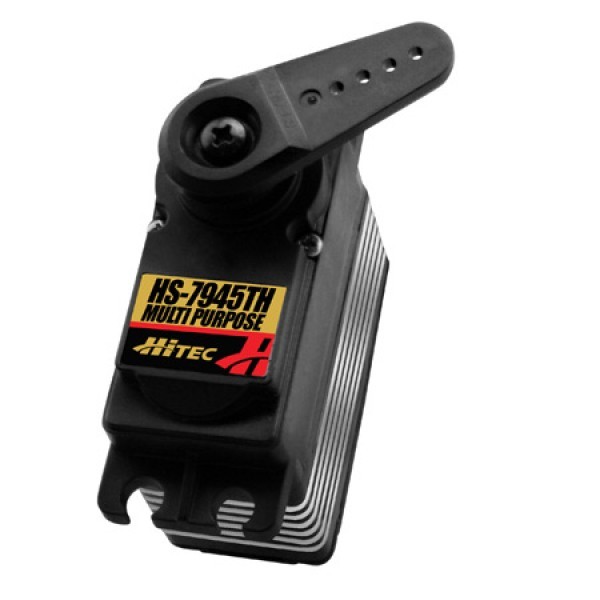

Combining high torque with high speed the HS-7945TH is Hitec's most versatile high voltage digital servo. Designed to operate on a two cell LiPo Pack, the HS-7945TH features high resolution "G2" second generation programmable digital circuit and strong Titanium gears giving you the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7040TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushings.

The HS-7945TH has been designed for applications where both high speed and high torque are needed. The HS-7945TH is perfect for High Performance Aircraft, Cars, and Trucks as well as larger Nitro and Electric Helicopters.

Programmable Features Include:
- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Resolution* (default is high resolution)
- Overload Protection* (default is off)

*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers. - (HTHS-7945TH)
  • G2 Digital Circuit
  • Titanium Gear Train (MK first gear)
  • Ultra Performance Coreless Motor
  • Heatsink Case
  • (8) O-Rings for Water/Dust/Fuel protection
  • Dual Ball Bearing Supported Output Shaft
Type
Digital
Application
High-performance aircraft and vehicles
Torque
250 oz-in (18.0kg-cm) @ 6.0V; 319 oz-in (23.0kg-cm) @7.4V
Speed
0.12 sec/60° @ 6.0V; 0.10 sec/60° @7.4V
Length
1.57 in (39.9mm)
Width
0.79 in (20.1mm)
Height
1.50 in (38.1mm)
Weight
2.40 oz (68g)
Bushing Or Bearing
Bearing
Bearing
Dual
Motor Type
7.4V Wind Coreless
Connector Type
Universal
Gear Type
Metal
Gear Material
Titanium
Voltage
6.0V - 7.4V
SKU HRC37945S
Brand Hitec RCD
