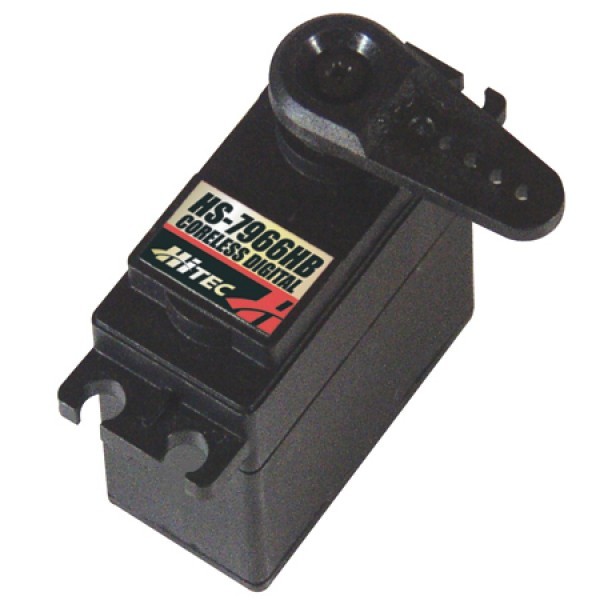

HS-7966HB is Hitec's fastest standard size servo. Providing a blinding fast .08 transit speed, instant torque and fantastic holding power, the HS-7966HB has our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection.



- (HTHS-7966HB)

  • G2 Digital Circuit
  • Coreless Motor
  • Dual Ball Bearing Supported Output Shaft
  • Karbonite Composite Gears
  • *** Programmable Features Include: ***
  • Dead Band Width
  • Direction of Rotation
  • Speed of Rotation (slower)
  • End Points
  • Neutral Points
  • Fail Safe On/Off
  • Fail Safe Point
  • Resolution* (default is high resolution)
  • Overload Protection* (default is off)
  • *these features are only programable with the HFP-20 (#44430) field programmer
Size Category
Standard
Type
Digital
Torque
92 oz/in (6.6 kg/cm) @ 4.8V, 111 oz/in (8 kg/cm) @ 6V
Speed
0.10 sec/60 deg @ 4.8V, 0.08 sec/60 deg @ 6V
Length
1.57 in
Width
0.78 in
Height
1.45 in
Weight
1.87 oz
Bushing Or Bearing
Bearing
Bearing
Single
Motor Type
Coreless
Gear Type
Metal
Gear Material
Karbonite
SKU HRC37966S
Brand Hitec RCD
