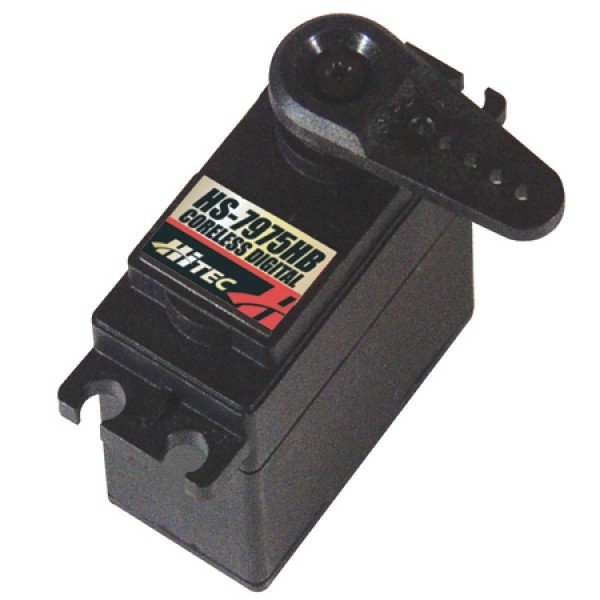

Providing the ultimate combination of torque and speed, the HS-7975HB servo features the Karbonite gear technology that offers four times the strength of nylon with no flex or wear resulting in incredible precision and that “locked in feel”. Featuring our our G2 second generation programmable digital circuit with twice the resolution of our original circuit and added programmable overload protection. The HS-7975HB is an excellent choice for pattern planes and high performance helicopters up to .90 size.

- (HTHS-7975HB)
  • G2 Digital Circuit
  • Coreless Motor
  • Dual Ball Bearing Supported Output Shaft
  • Karbonite Composite Gears
  • *** Programmable Features Include: ***
  • Dead Band Width
  • Direction of Rotation
  • Speed of Rotation (slower)
  • End Points
  • Neutral Points
  • Fail Safe On/Off
  • Fail Safe Point
  • Resolution* (default is high resolution)
  • Overload Protection* (default is off)
  • *these features are only programable with the HFP-20 (#44430) field programmer
Size Category
Standard
Type
Digital
Application
Pattern Planes and High Performance Helicopters
Torque
119 oz/in (6.6 kg/cm) @ 4.8V, 144 oz/in (8.2 kg/cm) @ 6V
Speed
0.14 sec/60 deg @ 4.8V, 0.11 sec/60 deg @ 6V
Length
1.57 in
Width
0.78 in
Height
1.45 in
Weight
1.87 oz
Bushing Or Bearing
Bearing
Bearing
Single
Motor Type
Coreless
Gear Type
Metal
Gear Material
Karbonite
SKU HRC37975S
Brand Hitec RCD
