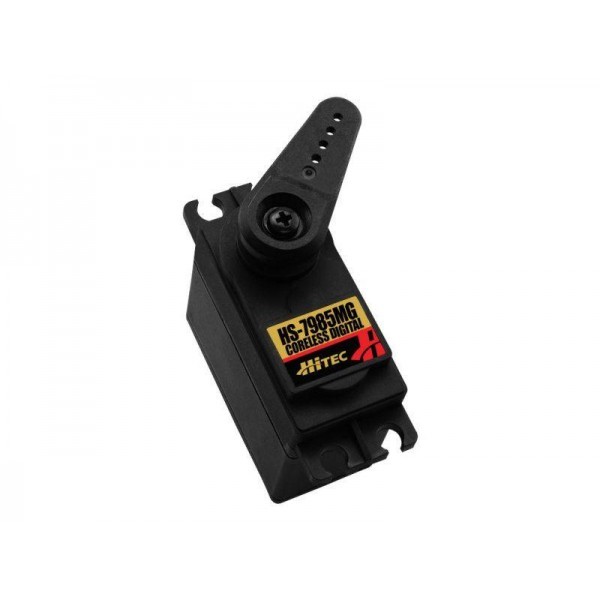

The new HS-7985MG High Torque Digital Servo has the added benefit of our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection. The technology doesn’t stop at the circuit board, with a high performance coreless motor, dual ball bearing supported output shaft, bushing supported gear shafts and our Heavy Duty Metal gear train the HS-7985MG was designed to withstand the stress of larger high performance aircraft and on/off road vehicles.

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Overload Protection
  • Resolution
  • Data Save / Load
  • Program Reset
  • G2 Digital Circuit
  • Coreless Motor
  • Dual Ball Bearing Supported Output Shaft
  • Metal Gear Train (MK first gear)
Operating Voltage Range (Volts DC)
4.8V ~ 6.0V
Speed (Second @ 60°)
0.16 ~ 0.13
Maximum Torque Range oz. / in.
144 ~ 172
Maximum Torque Range kg. / cm.
10.4 ~ 12.4
Current Draw at Idle
9 mA
No Load Operating Current Draw
240 mA
Stall Current Draw
3,000 mA
Dead Band Width
1 µs
Dimensions (Metric)
40.0 x 20.0 x 37.0
Weight (Gram)
62
Circuit Type
G2 Programable Digital
Motor Type
Coreless Metal Brush
Gear Material
Metal
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
Standard 24
Case Material
Plastic
Dust / Water Resistance
Splash Proof
Connector Gauge (AWG) / Strand Count
22 / 60
SKU HRC37985
Barcode # 669962379854
Brand Hitec RCD
Shipping Weight 0.5000kg
