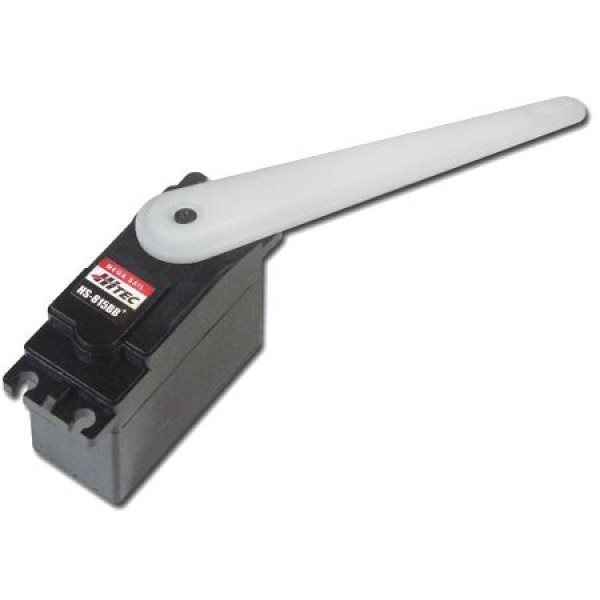

The HS-815BB Mega sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 4.25 inch arm. With its dual ball bearing supported output shaft the HS-815BB will provide years of reliable service in larger sailboat applications

- (HTHS-815BB)

  • Up to 140 degrees of travel
  • 4.25 inch (108mm) arm
  • Dual Ball Bearing Supported Output Shaft
  • Water and Dust Tight
Size Category
Specialty
Type
Analog
Application
Sailboats
Torque
275.0 oz-in (19.8kg-cm) @ 4.8V; 343.0 oz-in (24.7kg-cm) @ 6V
Speed
0.19 sec/60 deg @ 4.8V; 0.14 sec/60 deg @ 6V, at no load
Length
2.59 in (66.0mm)
Width
1.18 in (30.0mm)
Height
2.26 in (57.6mm)
Weight
5.36 oz (152g)
Bushing Or Bearing
Bearing
Bearing
Dual
Motor Type
3 Pole
Connector Type
Universal
Gear Type
Nylon
Current Draw Idle
8mA
Voltage
4.8V to 6.0V
Deadband
8µs
SKU HRC31815S
Brand Hitec RCD
Shipping Weight 1.0000kg
