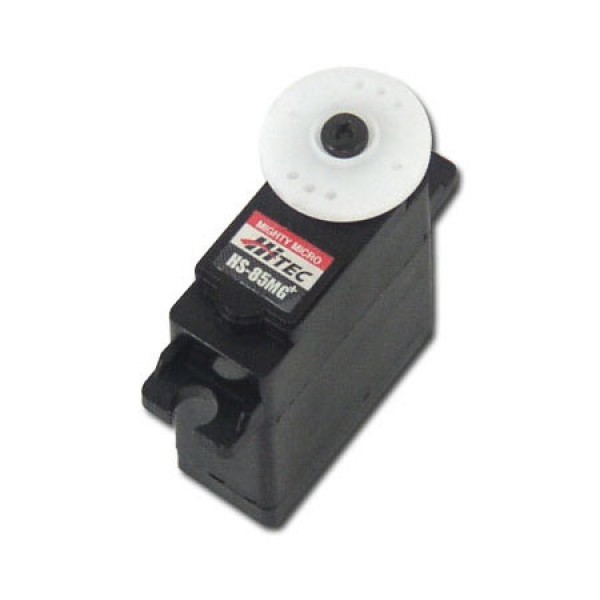

The HS-85MG feature a high power motor for greater speed and torque. The HS-85MG is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sailplanes.

- (HTHS-85MG)

  • Ball Bearing Supported Output Shaft
Size Category
Minis and Micros
Type
Analog
Application
Electric Air Products, Fast Electric Boats, Rocket Planes and Sailplanes
Torque
41.7 oz-in (3.0kg-cm) @ 4.8V; 48.6 oz-in (3.5kg-cm) @ 6V
Speed
0.16 sec/60 deg @ 4.8V; 0.14 sec/60 deg @ 6V, at no load
Length
1.14 in (29.0mm)
Width
0.51 in (13.0mm)
Height
1.18 in (30.0mm)
Weight
0.77 oz (21.9g)
Bushing Or Bearing
Bearing
Motor Type
3 Pole
Connector Type
Universal
Gear Type
Metal
Current Draw Idle
8mA
Voltage
4.8V to 6.0V
Deadband
8µs
SKU HRC32085S
Barcode # 669962320306
Brand Hitec RCD
Shipping Weight 0.0500kg
