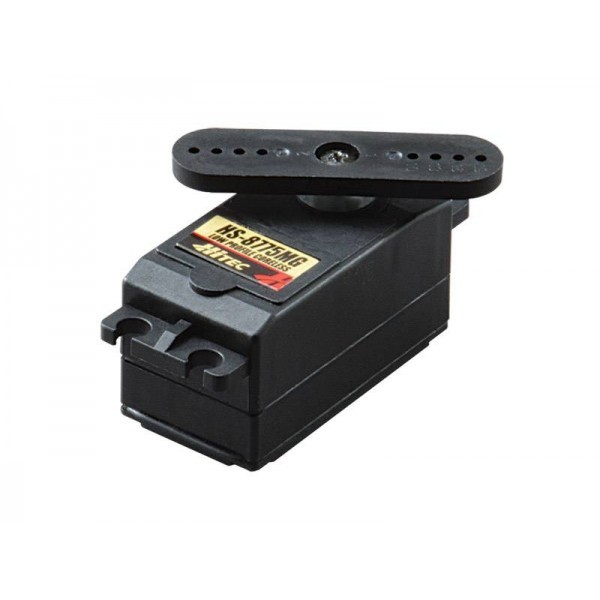

Featuring a coreless motor for smooth operation and faster response time, our HS-8775MG low profile, digital servo provides high resolution performance to your electric and 1/10th scale nitro vehicles, mid to large size nitro and large scale electric helicopters. Its metal gears and dual ball bearings add to its strength and reliability. Featuring the industry standard 25-tooth output spline, the HS-8775MG is your “go to” servo.
  • Efficient Coreless Motor
  • Strong Metal Gears
  • NonProgrammable, Digital Circuitry
  • Standard 25Tooth Spline
  • Low Profile Size for Tighter Installations
Operating Voltage Range (Volts DC)
4.8V ~ 6.0V
Speed (Second @ 60°)
0.12 ~ 0.10
Maximum Torque Range oz. / in.
100 ~ 125
Maximum Torque Range kg. / cm.
7.2 ~ 9.0
Current Draw at Idle
10 mA
No Load Operating Current Draw
240 mA
Stall Current Draw
3,000 mA
Dead Band Width
< 1 µs
Dimensions (Metric)
40.4 x 21.0 x 25.4
Weight (Gram)
45
Circuit Type
HR Digital
Motor Type
Coreless Metal Brush
Gear Material
Titanium
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
H25T
Case Material
Plastic
Dust / Water Resistance
N / A
Connector Gauge (AWG) / Strand Count
20 / 80
SKU HRC38775
Brand Hitec RCD
