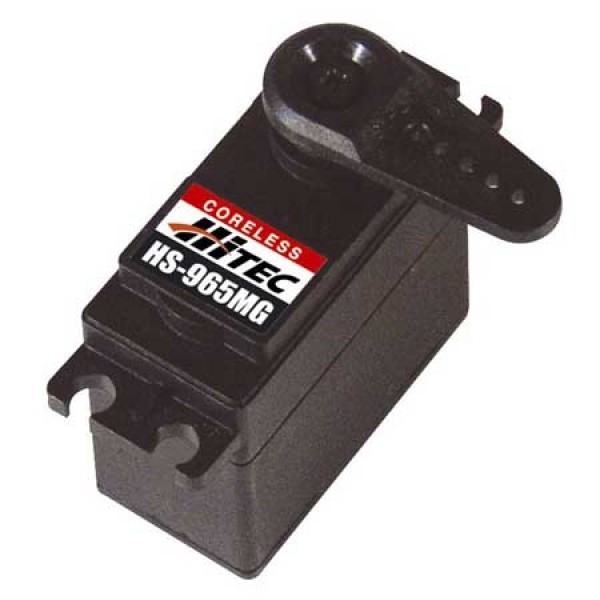

Designed to withstand the stress of larger aircraft or on/off road vehicles, the high speed HS-965MG Coreless Motor Servo features excellent resolution and centering. The case top has been improved with two brass axial bushing for greater strength and stability to insure longevity and smooth rotation. The newer HS-965MG replaces the now discontinued HS-925MG.

- (HTHS-965MG)
  • Improved case top
  • 2 brass axial bushings add strength and stability to ensure longevity and smooth rotation
  • Coreless motor
Size Category
Standard
Type
Analog
Application
Larger Aircraft and On/Off Road Vehicles
Torque
102.8 oz-in (7.4kg-cm) @ 4.8V; 131.9 oz-in (9.5 kg-cm) @ 6V
Speed
0.13 sec/60 deg @ 4.8V; 0.10 sec/60 deg @ 6V, at no load
Length
1.57 in (40.0mm)
Width
0.78 in (20.0mm)
Height
1.45 in (37.0mm)
Weight
2.18 oz (62.0g)
Bushing Or Bearing
Bearing
Bearing
Dual
Motor Type
Coreless
Connector Type
Universal
Gear Type
Metal
Current Draw Idle
3mA
Current Draw Stall
2400mA @ 4.8V; 3000mA @ 6V
Voltage
4.8V to 6.0V
Deadband
5µs
SKU HRC32965S
Brand Hitec RCD
