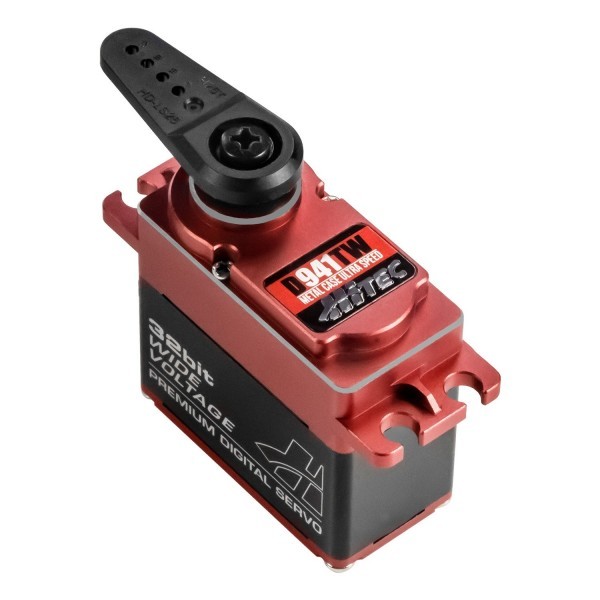

Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by their 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!

  • High Response Circuitry
  • Wide Voltage Capabilities
  • 32Bit MCU Technology
  • Full Programmability
  • Smart Sense Technology for Servo Analytics
  • 25Tooth Output Spline
Dimensions
1.57" x 0.79" x 1.50" (40 mm x 20 mm x 38 mm)
Product Weight
2.4 oz (68 g)
Output Shaft Style
25 tooth (H25T) spline
Voltage Range
4.8 V - 7.4 V
No-Load Speed (4.8V)
0.11 sec/60°
No-Load Speed (6.0V)
0.08 sec/60°
No-Load Speed (7.4V)
0.07 sec/60°
Stall Torque (4.8V)
139 oz-in. (10.0 kg.cm)
Stall Torque (6.0V)
187 oz-in. (13.5 kg.cm)
Stall Torque (7.4V)
229 oz-in. (16.5 kg.cm)
Max PWM Signal Range (Standard)
750-2250 μsec
Max Travel (out of box)
120°
Pulse Amplitude
3-5 V
Operating Temperature
-20°C to +60°C
Continuous Rotation Modifiable
Yes
Direction w/ Increasing PWM Signal
Clockwise
Deadband Width
1 µs
Motor Type
Coreless
Feedback Style
5KΩ Potentiometer
Output Shaft Support
Dual Ball Bearings
Gear Type
Straight Cut Spur
Gear Material
Titanium
Wire Length
11.81" (300 mm)
Wire Gauge
20 AWG
Wire Length
11.81" (300 mm)
SKU HRC36941
Brand Hitec RCD
