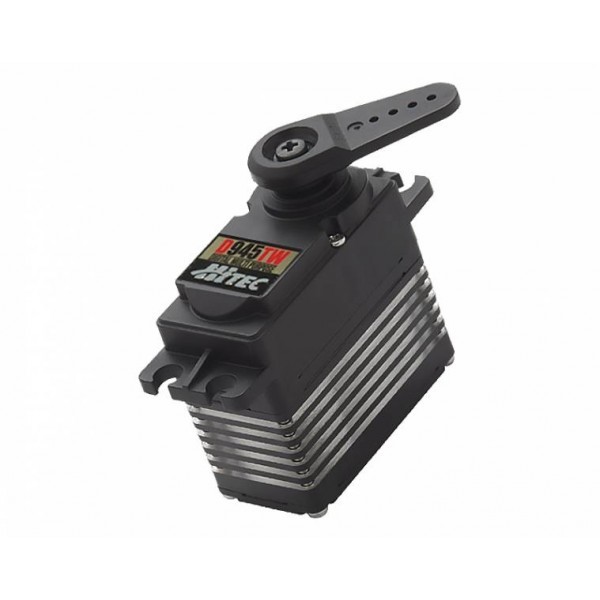

The titanium D-945TW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
  • Programmable PWM Digital Amplifier
  • 32Bit MCU with 12Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 25Tooth Output Spline
  • Coreless Metal Brush Motors
  • Nylon Reinforced Plastic Upper and Lower Case
  • Diamond Cut Aluminum Heat Sink Center Case
  • Dust Resistant and Splash Proof Case
Operating Voltage Range (Volts DC)
4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°)
0.16 ~ 0.12 ~ 0.10
Maximum Torque Range oz. / in.
194 ~ 250 ~ 319
Maximum Torque Range kg. / cm.
14.0 ~ 18.0 ~ 23.0
Current Draw at Idle
30 mA
No Load Operating Current Draw
470 mA
Stall Current Draw
6,200 mA
Dead Band Width
1 µs
Dimensions (Inches)
1.57 x 0.79 x 1.50
Dimensions (Metric)
40.0 x 20.0 x 38.0
Weight (Ounces)
2.4
Weight (Gram)
68
Circuit Type
32bit Programable Digital
Motor Type
Coreless Metal Brush
Gear Material
Titanium
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
H25T
Case Material
Plastic / Aluminum
Dust / Water Resistance
Splash Proof
Connector Gauge (AWG) / Strand Count
20 / 80
SKU HRC36946
Brand Hitec RCD
