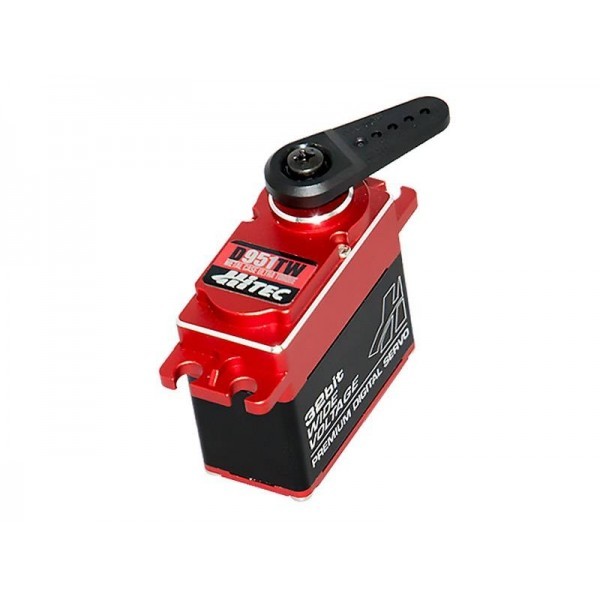

Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with our extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!
  • High Response Circuitry
  • Wide Voltage Capabilities
  • 32Bit MCU Technology
  • Full Programmability
  • Smart Sense Technology for Servo Analytics
  • 25Tooth Output Spline
Operating Voltage Range (Volts DC)
4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°)
0.23 ~ 0.17 ~ 0.14
Maximum Torque Range oz. / in.
292 ~ 403 ~ 486
Maximum Torque Range kg. / cm.
21.0 ~ 29.0 ~ 35.0
Current Draw at Idle
30 mA
No Load Operating Current Draw
500 mA
Stall Current Draw
6,200 mA
Dead Band Width
1 µs
Dimensions (Inches)
1.57 x 0.79 x 1.50
Dimensions (Metric)
40.0 x 20.0 x 38.0
Weight (Ounces)
2.4
Weight (Gram)
68
Circuit Type
32bit Programable Digital
Motor Type
Coreless Metal Brush
Gear Material
Titanium
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
H25T
Case Material
Aluminum
Dust / Water Resistance
Splash Proof
Connector Gauge (AWG) / Strand Count
20 / 80
SKU HRC36951
Brand Hitec RCD
