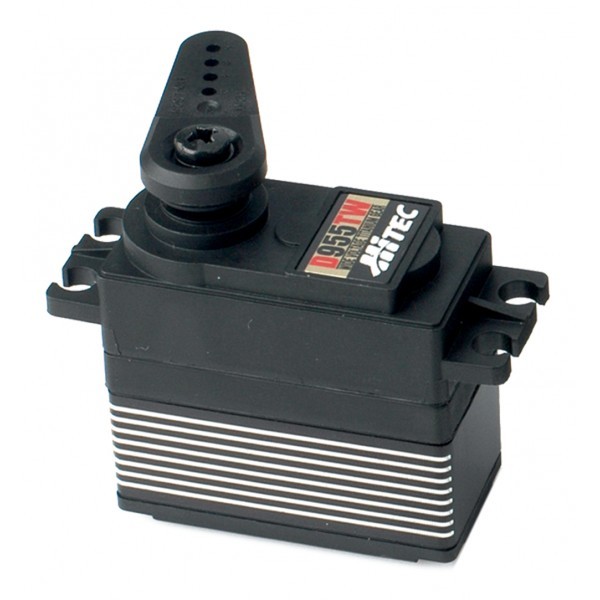

HITEC HS-D955TW Ultra Response, Wide Voltage, Ultra Torque, Splash Proof, Servo with Titanium Alloy gears.

Applications:

  • Aircraft 20~120 Class
  • All EP 600~700 & GP 30~90 Class Helicopters
  • 1/10~1/4 Scale Car Steering & Throttle
  • Nitro & Gasoline Boats

32bit MCU/12bit ADC

Hitec's new 32bit ADC allow the best ever response in the hobby industry. You can also udtilize Hitec's PC interface to customize your D-series servos for maximum performance (EPA, Resolution set, Fail safe, Soft Start), in a multitude of applications.

Wide Voltage

Hitec's First Wide Voltage capability supports all types of receiver batteries, from 4.8 to 7.4 volts.

  • Operation Voltage: DC 3.5~8.4V
  • Wide Voltage, Ultra Torque Digital Servo
  • Programmable Digital Amplifier with MOSFET Drive
  • Durable Titanium Alloy Gears with Dual Ball Bearing
  • Ultra Hardness Gear Shaft with 3 Axial Metal Bushing
  • Heat Sink for Motor
  • Water & Dust Resistance (Splash Proof)
  • H25T 25 tooth spline horn Gear
  • 3mm Horn Screw (' ' & HEX Socket Screw Included)
4.8V Torque
18.0kg.cm
4.8V Speed
0.19 sec/60º
6.0V Torque
24.0kg.cm
6.0V Speed
0.15sec/60º
7.4V Torque
29.0kg.cm
7.4V Speed
0.12sec/60º
Dimensions
40 x 20 x 37 mm
Weight
66g
SKU HRC36955
Barcode # 669962369558
Brand Hitec RCD
Shipping Weight 0.0500kg
