With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9360’s speed is ideal for helicopter pilots.

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Data Save / Load
  • Program Reset (From File)
  • Programmable 12Bit PWM Digital Amplifier
  • Custom Long Life Brushless Motor
  • 1M Cycle Long Life Potentiometer
  • Constant Output Torque
  • Wide Operating Voltage (5 ~ 9 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • Dust Resistant and Splash Proof Case
  • 25Tooth Output Spline
  • Hybrid Nylon Reinforced Plastic and Aluminum Case
  • Low Power Consumption
Operating Voltage Range (Volts DC)
6.0V ~ 7.4V
Speed (Second @ 60°)
0.08 ~ 0.06
Maximum Torque Range oz. / in.
236
Maximum Torque Range kg. / cm.
17
Current Draw at Idle
27 mA
No Load Operating Current Draw
250 mA
Stall Current Draw
2,100 mA
Dead Band Width
1 µs

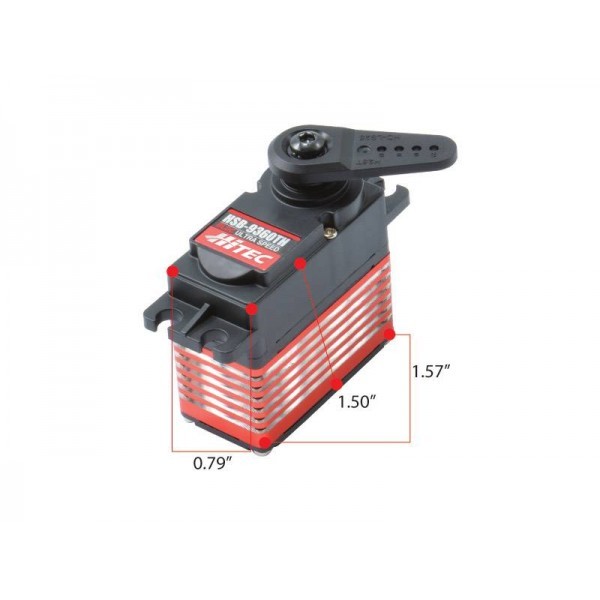

Dimensions (Metric)
40.0 x 20.0 x 38.0
Weight (Gram)
68
Circuit Type
EBL Digital
Motor Type
NeuCastle Brushless
Gear Material
Titanium
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
H25T
Case Material
Plastic / Aluminum
Dust / Water Resistance
Splash Proof
Connector Gauge (AWG) / Strand Count
20 / 80
SKU HRC39360
Brand Hitec RCD
