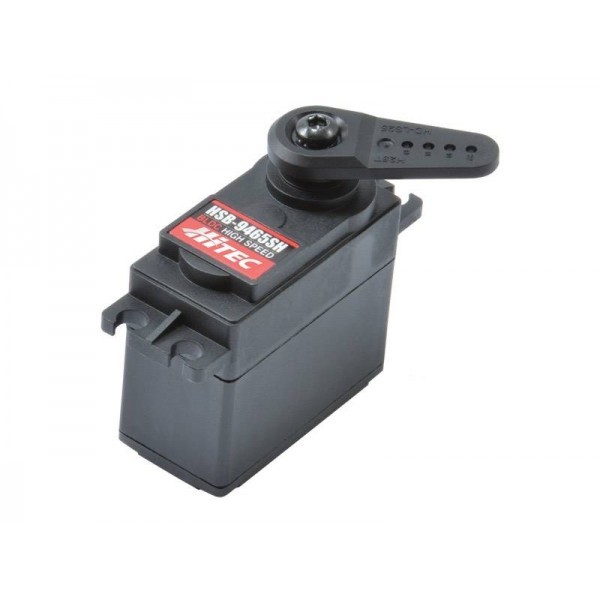

Pro level hobbyists demand the power and precision found in our triple threat HSB-94XX servos. Each one is designed with our durable steel gears and impressive Neu brushless motors with the HSB-9465SH bringing lightning speed.

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Data Save / Load
  • Program Reset (From File)
  • Programmable 12Bit PWM Digital Amplifier
  • Custom Long Life Brushless Motor
  • 1M Cycle Long Life Potentiometer
  • Constant Output Torque
  • Wide Operating Voltage (5 ~ 9 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • Dust Resistant and Splash Proof Case
  • 25Tooth Output Spline
  • Nylon Reinforced Plastic Case
  • Ultra Low Power Consumption
Operating Voltage Range (Volts DC)
6.0V ~ 7.4V
Speed (Second @ 60°)
0.09 ~ 0.07
Maximum Torque Range oz. / in.
187
Maximum Torque Range kg. / cm.
13.5
Current Draw at Idle
30 mA
No Load Operating Current Draw
430 mA
Stall Current Draw
900 mA
Dead Band Width
1 µs
Dimensions (Inches)
1.57 x 0.78 x 1.45
Dimensions (Metric)
40.0 x 20.0 x 37.0
Weight (Ounces)
2.19
Weight (Gram)
62
Circuit Type
EBL Digital
Motor Type
NeuCastle Brushless
Gear Material
Steel
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
H25T
Case Material
Plastic
Dust / Water Resistance
Splash Proof
Connector Gauge (AWG) / Strand Count
20 / 80
SKU HRC39465
Brand Hitec RCD
