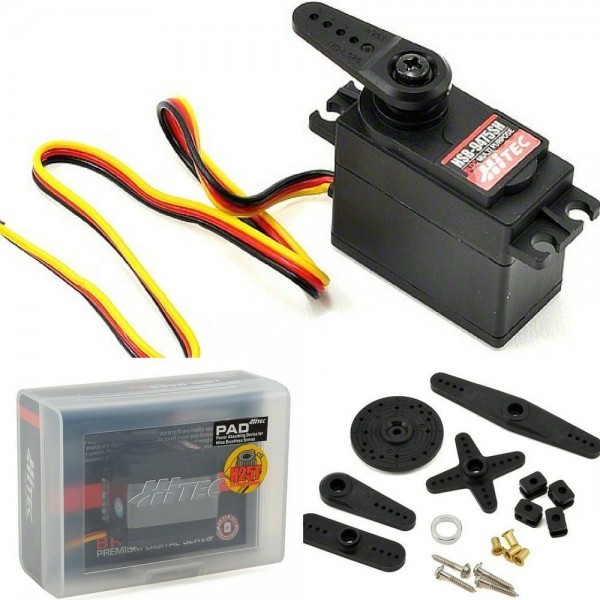

This is the Hitec HSB-9475SH Multi-Purpose Brushless Steel Gear Digital High Voltage Servo. Pro level hobbyists demand the power and precision found in the Hitec triple threat HSB-94XX servos. Each one is designed with durable steel gears and impressive Neu brushless motors with the HSB-9475SH delivering multi-purpose performance.

Product Notice Regarding Hitec Brushless Servos with Certain RC Devices: While compatible with most radio control devices, the regenerative braking feature of the HSB-9XXX series servos may cause a problem if the device cannot accept a backflow of current. The types of devices that cannot accept this backflow are: Voltage Regulators, Power Safe Receivers and certain BEC circuits whether stand alone or integrated within an Electronic Speed Control. Check with the manufacturer or the Hitec website for a list of compatible models. If your device cannot accept a current backflow, then you must install a PAD (Power Absorbing Device).

  • Power Efficient Brushless Motor Controller: Energy efficiency is a common interest for all modellers. The HSB9XXX Series uses the latest control circuit technology including a regenerative braking circuit which puts power back into the battery as the motor slows. This feature, combined with ultra low current draw under sustained loads, allows Hitec brushless servos to consume 1/5 the power of most other brushless servos on the market today.
  • Programmable 12 Bit Digital Circuit: Using the DPC10 PC interface and downloadable software, users can program a variety of features in the HSB9XXX Series including Fail Safe On/Off and Position, direction, EPA, Speed (Slower), Dead Band, and Soft Start.
  • Custom NeuMotor: Designed by Steve Neu exclusively for the HSB9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
  • Constant Torque Output: Thanks to revolutionary circuit and motor designs, the HSB9XXX Series maintain their speed in a more consistent manner, regardless of load.
  • Hybrid MPD 1st Gear: Hitec's unique ultra durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
  • IndustryLeading Titanium Gear Train: Hitec was the first manufacturer to utilise low wear Titanium gears in their servos and continue to be the leader in Titanium gear technology.
  • 25Tooth Standard Spline: Hitec Brushless servos utilise a standard 25 tooth output spline for maximum compatibility with the large variety of aftermarket horns available on the market
Speed @ 6.0V
0.13sec/60deg
Speed @ 7.4V
0.10sec/60deg
Torque @ 6.0V
268 oz-in (19.4kg-cm)
Torque @ 7.4V
269 oz-in (19.4kg-cm)
Dimensions
40x20x37mm
Gear
Steel
Output Shaft
25T Spline
Applications
1/8 scale Buggy/Truggy, Large Planes
Weight
62g
SKU HRC39475
Brand Hitec RCD
