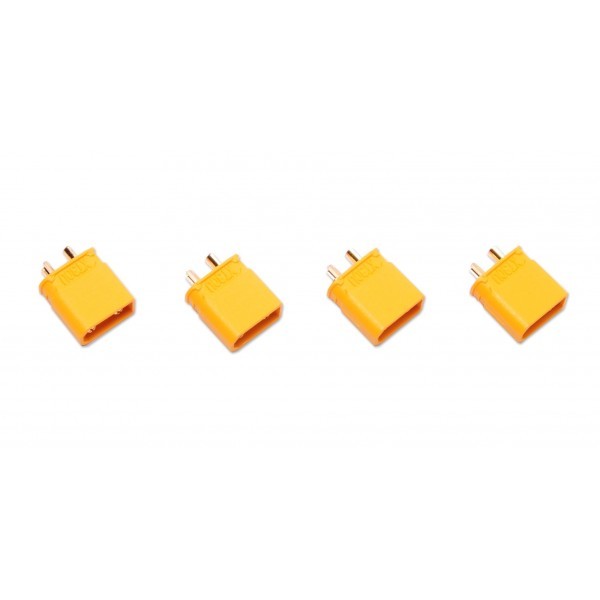

Hyperion XT30mini is an addition to the line of connectors and is perfect for Mini RC use! Its designed to accept small wire guages and perfect for small applications. The Xt30 is a good replacement for mini JST or Mini T-connectors.

The XT30 has been designed to meet the needs of the mini Rc use and smaller application such as 250 class Quadcopters to foamy flyers this will be the new standard.

Made from high-temp Nylon and gold plated spring connectors, XT30 ensures a solid high-amp connection, perfect for applications up to 30A constant.

Infact XT30 is a better option than Mini Deans T-Connectors and Mini JST for the given size and weight.

  • Gold plated Brass spring Connections
  • Maximum contact point for optimum current flow
  • Perfect option for Mini connectors
  • Small and light weight
Amps
30A Continuous
Banana Plug
2mm
Metal Material
Brass gold-plated
Plastic Material
PA66
Contact Resistance
0.70mΩ
Weight
0.7g
Size
Male=12x11x6mm
Recommend Temperature
-20°C ~ 120°C
Recommend Cable Spec.
18AW
SKU HP-CONXT30-U04M
