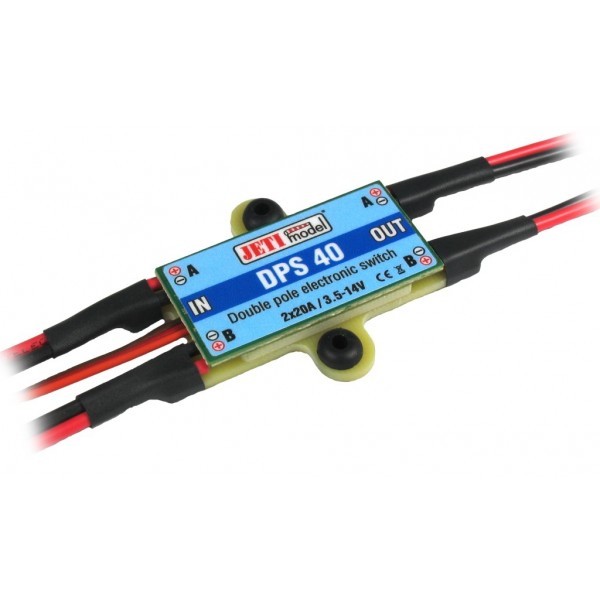

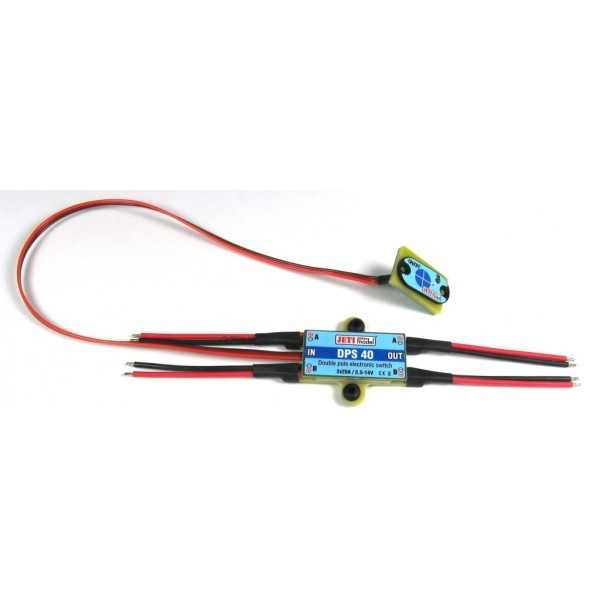

The DPS 40 (twin electronic switch) and SPS 20 (single electronic switch) are electronic switches mainly meant to switch supply voltages of receivers/servos, regulators, fuel pumps or similar equipment. A big advantage of electronic switches in comparison to mechanical ones is, in general, their higher reliability as far as vibration resistance is concerned. Another advantage of the electronic switch is given by its practical ability to withstand an unlimited number of switching cycles.

Electronic switches have no moving parts like contacts which would be wearing out during switching processes, therefore their durability is extremely long. Moreover, they are not prone to spontaneous and unexpected false tripping with known disastrous effects. Last but not least, electronic switches offer much lower inherent transient resistance in comparison to mechanical switches.

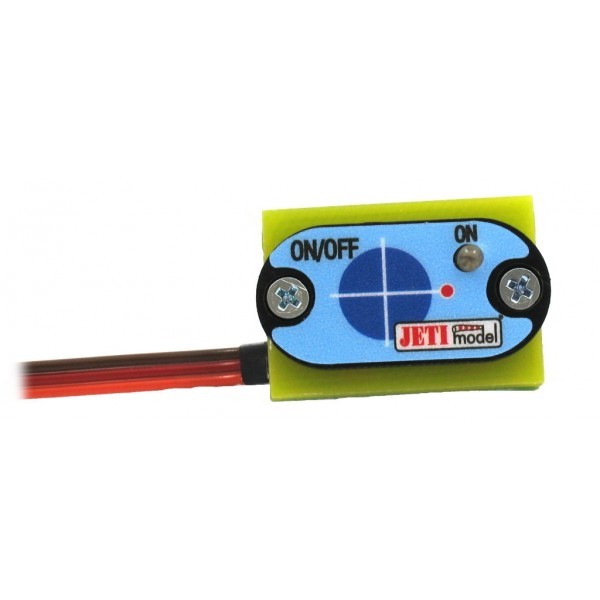

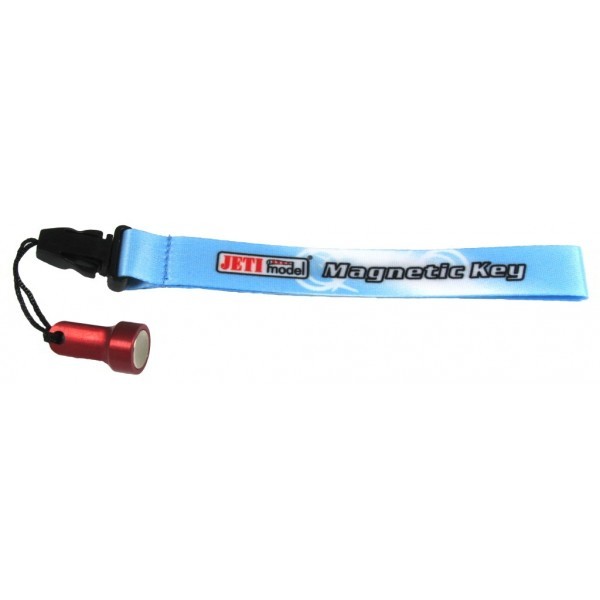

The electronic switches DSP 40 and SPS 20 are operated with the aid of a magnetic switch which can be fixed to the fuselage or elsewhere. The system becomes switched on or off with the application of a special magnet.

The switches DSP 40 and SPS 20 are admittedly intended for the purpose of switching supply voltages of receivers and servos, but they may be as well successfully used for other DC switching tasks.

Weight [g]
Dimensions [mm]
46 x 45 x 6.5
Sustained current [A]
Operational temperature [°C]
-20 ... 85
Recommended input voltage [V]
3,5 ... 14
Output voltage [V]
max. 16
Idle current [µA]
Number of battery inputs
Input voltage max. [V]
Peak current (max 5s) [A]
Barcode # 8595245909796
Brand Jeti Model
Shipping Weight 1.0000kg
