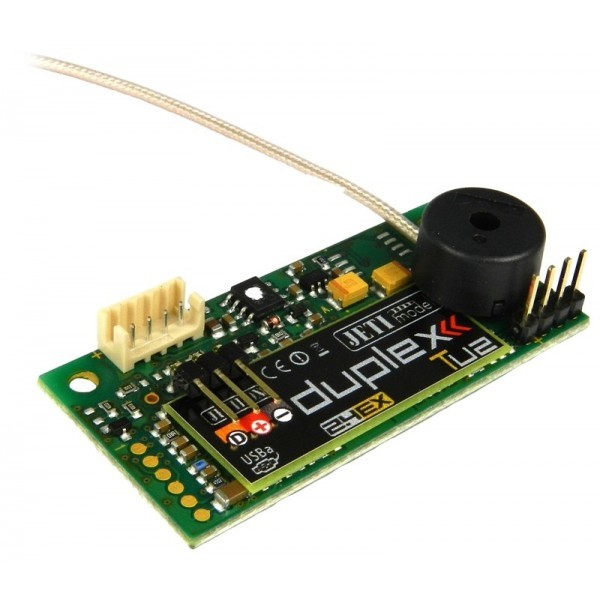

DUPLEX TU2 EX module is suitable for all transmitters, especially for those with non-exchangeable HF plug-in modules. Installation is possible into almost all types of transmitters. There are only two main requirements: A transmitter with the possibility of operation in PPM mode and space for the module in the transmitter. If needed, Duplex TU2 EX is also possible to put in the box and fit the transmitter.

DUPLEX TU2 EX module is an enhanced version DUPLEX TU2. Along with the mounting kit, it simplifies mounting SWTU2 to the transmitters. An assembly set VOICE-1 may be better adapted to the acoustic properties after incorporation into the transmitter.

Futaba:

  • FC-16, FC-18 JUNIOR, T6EXHP, 12FG, 12Z, 14MZ, FX-18, FX-14, FX-30

Hitec:

  • Laser 4, Laser 6, Flash 5, Optic 6 sport
Graupner:
  • MC-10, MC-12, MC-14, MC-15, MC-16, MC-19, MC-22, MC-16-20,
  • MX-12, MX-16s

Multiplex:

  • Cockpit SX
  • Profi 3000, 4000

Other brands of transmitters.

DUPLEX System EX is fully compatible with the previous version of the DUPLEX.

Weight [g]
15
Dimensions [mm]
55 x 26 x 11
Number of channels
16
Operational temperature [°C]
-10 ... 85
Supply Voltage [V]
3,5 - 16
Average Current [mA]
38
Output Power [dBm]
20
Antenna [dBi]
2
Acoustic signalling of conditions
Yes
SKU JDEX-TU2
Brand Jeti Model
