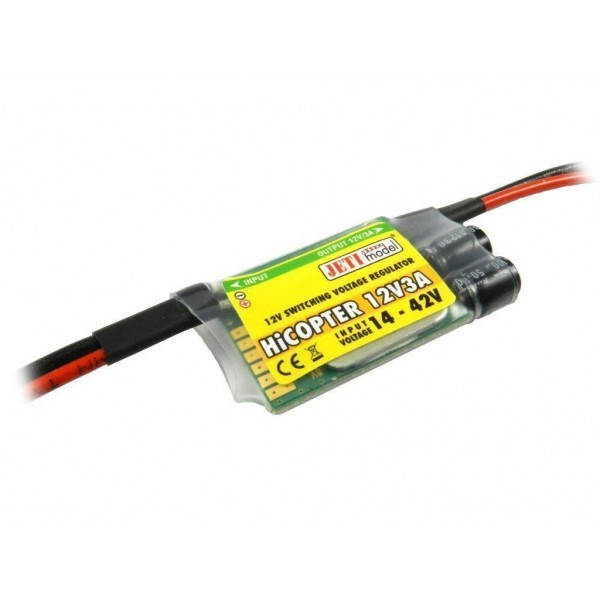

The switching voltage regulator HiCOPTER is supposed to act as a current supply for accessories in the XCopters. The switching voltage regulators HiCOPTER 12V make it possible to use wide range of input voltages from 4S up to 12S Li-XX cells.

The switching voltage regulator HiCOPTER 12V3A comprises of two input (IN) and two output (OUT) cables with cross-section of 1mm2 . The batteries are connected to the input cables, the output cables are used to connect the powered accessories.

Table showing the dependence of maximum continuous current loads on input voltages

Number of Lixx cells

4

5

6

7

8

9

10

Continuous output current* [A]

4.7

4.4

3.9

3.7

3.3

3.3

2.7

* maximum continuous current values are valid only for operating conditions with sufficient cooling airflow

Weight [g]
29
Dimensions [mm]
60 x 28 x 10
Telemetry
No
Operational temperature [°C]
-20 ... 85
Recommended input voltage [V]
14 ... 51
Output voltage [V]
12
Number of battery inputs
1
Input voltage max. [V]
51
SKU J-HIC-12V3A
Brand Jeti Model
