The switching voltage regulator HiCOPTER is supposed to act as a current supply for accessories in the XCopters. The switching voltage regulators HiCOPTER 12V make it possible to use wide range of input voltages from 4S up to 12S Li-XX cells.

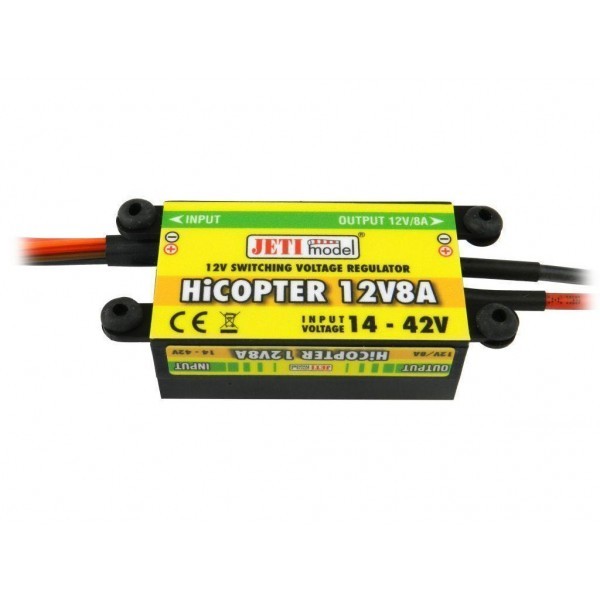

The switching voltage regulator HiCOPTER 12V8A comprises of two input (IN) cables with a cross-section of 1.5mm2that are used to connect the batteries and two output (OUT) cables with a cross-section of 2.5mmthat are used to connect the powered accessories.

The switching voltage regulator is switched on immediately after the power supply is connected.

Table showing the dependence of maximum continuous current loads on input voltages



Number of Lixx cells

3

4

5

6

7

8

9

10

Continuous output current* [A]

18

17,5

17

16,5

16

15,5

15

14,5

* maximum continuous current values are valid only for operating conditions with sufficient cooling airflow

Weight [g]
100
Dimensions [mm]
80 x 36 x 25
Telemetry
No
Operational temperature [°C]
-20 ... 85
Recommended input voltage [V]
14 ... 51
Output voltage [V]
12
Number of battery inputs
1
Input voltage max. [V]
51
SKU J-HIC-12V8A
Brand Jeti Model
