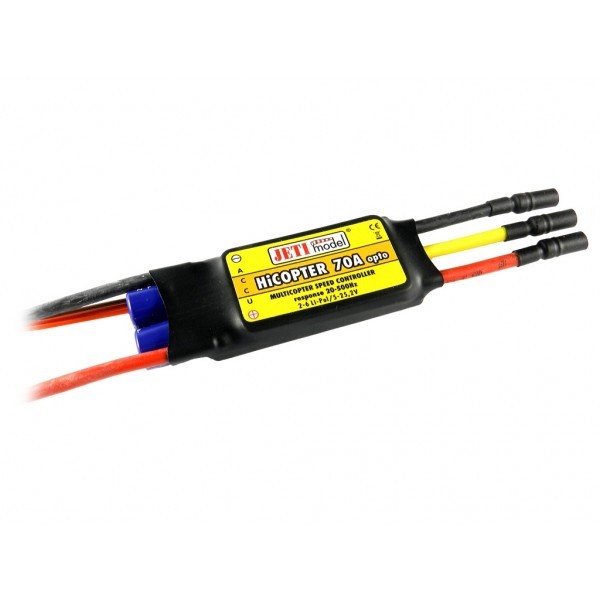

Speed controllers of HiCOPTER product line are aimed at controlling and regulating BLDC motors that are used for driving multicopters. These controllers are pre-set from the manufacturer for the cooperation with stabilization systems used in copters. The controllers accept control signal with a frequency up to 500Hz and they respond to the needed change of revolutions from control/stabilization unit of the copter.

HiCOPTER speed controllers have control signal galvanically (optically) separated from flight battery. HiCOPTER speed controllers do not allow setting any parameters. Brakes of the controllers are generally switched off, cut-off voltage is at the lowest possible level (depending on a type) and the timing of motor is set by the speed controller automatically. A potential change in the direction of rotation can be done by exchange of any two phase cables.

Weight [g]
45
Dimensions [mm]
70 x 26 x 11
Sustained current [A]
70
Telemetry
No
Operational temperature [°C]
-20 ... 85
Supply Voltage [V]
5 ... 25,2
Batteries NiXX
6 ... 16
Batteries LiXX
2 ... 6
Batteries LiFe
2 ... 7
SKU J-HIC-70-O
