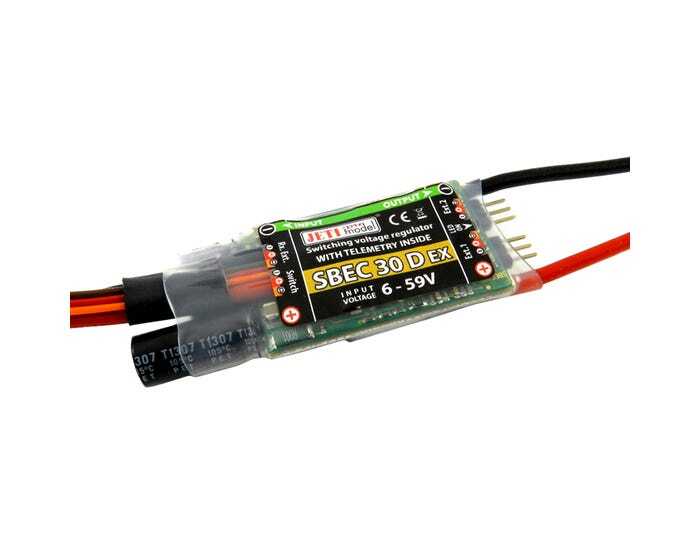

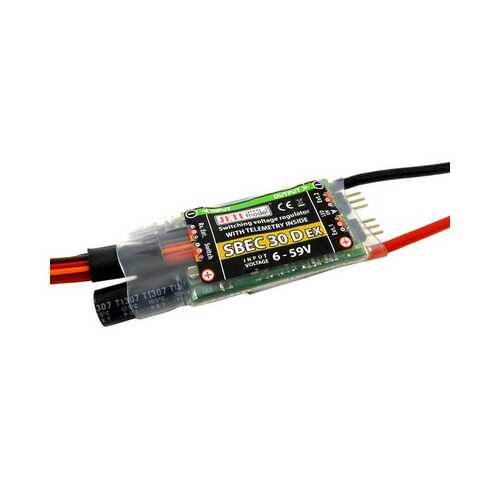

The switching voltage regulator SBEC 30D EX is supposed to function as a current supply for receivers and servos. It enables the use of a wide range of input voltages from 2S up to 15S Li-XX cells.

The switching voltage regulator is supposed to act as a current supply for receivers and servos. It makes possible to use a wide range of input voltages from 2S up to 10S Li-XX cells.

The switching voltage regulator SBEC 30D EX is supposed to function as a current supply for receivers and servos. It enables to use a wide range of input voltages from 2S up to 15S Li-XX cells. Setup of the output voltage between 5 and 8.4V is accomplished in the JETI transmitter via EX Bus connection or through JETIBOX. This implies that the SBEC is also prepared for use with new "higher" voltage servos. The SBEC 30D is suitable for medium and larger model due to its maximum current of 30A.

SBEC 30D measures input and output voltage of the BEC, current and consumed capacity of the battery. Measured data can be observed by displaying the telemetry in the JETI Duplex transmitter.



What's in the box?

  • (1) S-BEC 30D EX 30A BEC

  • (1) Magnetic Switch

  • Manuals

  • (2) Screws

  • (1) Battery Connector

  • (2) Short Heat Shrink Tubes

  • (1) Male to Male JR-Style Extension

  • Jeti Model Decals

Weight [g]
50 g
Dimensions [mm]
72 x 28 x 14 mm
Telemetry
Yes
Operational temperature [°C]
-20 to 85°C
Recommended input voltage [V]
6 to 59V
Output voltage [V]
5 to 8.4V
Idle current [µA]
70 to 130 µA
Number of battery inputs
1
Input voltage max. [V]
59 V
Peak current (max 5s) [A]
30 A
SKU J-SBEC-30-D
Barcode # j-sbec-30-d
Brand JETI MODEL
