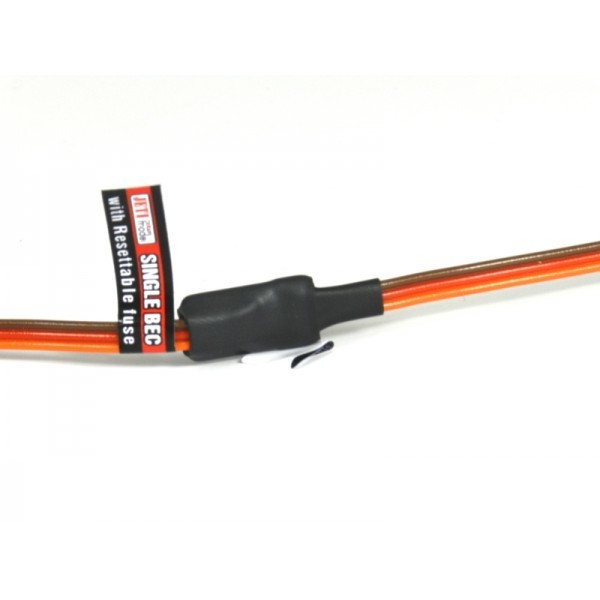

SingleBEC is a linear regulator to provide power for a standard servo with a maximum input voltage of 6V. The SingleBEC can also be used to provide power for the control units of helicopters or multi-rotor aircraft.

Its great advantage is that it allows the use of standard servos in systems designed for the so-called High-Voltage servos. Due to its dimensions, the SingleBEC is designed even for small airplane models. Its internal filtering improves the quality of the output voltage for the servo.

The small size and low weight of the SingleBEC allows for very simple installation in all parts of the plane. Due to its performance parameters, the Single BEC is suitable for the category of micro and mini servos with load strengths of @ 25 kg/cm at 6V.

Weight [g]
5
Dimensions [mm]
19 x 9.3 x 6.6
Sustained current [A]
1
Operational temperature [°C]
-20 ... 75
Recommended input voltage [V]
5.5 ... 8.4
Output voltage [V]
5.5
Number of battery inputs
1
Input voltage max. [V]
24
Peak current (max 5s) [A]
15
SKU J-SB
Barcode # 8595245909291
Brand Jeti Model
Shipping Weight 0.0500kg
