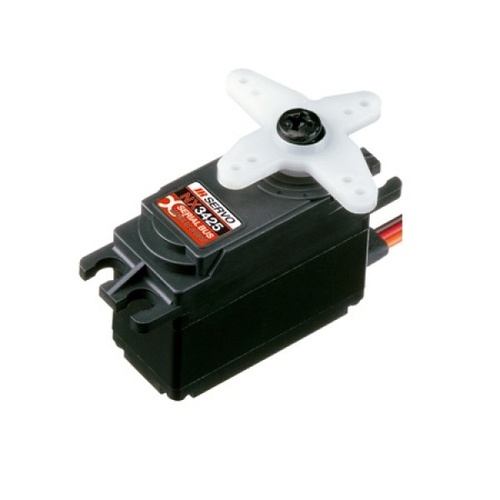

The NX3425 is a wide-voltage servo from JR that is compatible with their XBus systems. It is a great choice for small-scale aircraft, cars and helicopter swashes. This servo not only allows for serial servo connection, but also individual servo programming with adjustments available for various applications. In keeping with the NX range, the 3425 can automatically detect the type of output it is plugged into, whether that be conventional receiver PWM outputs or XBus. This makes the servo compatible with both signals without the need for a converter. Compatible receivers include DMSS, DSMJ, 72MHz and 40MHz. When working in conjunction with a JR XBus system, the NX3425 can be programmed using an XG transmitter without any additional programming devices required. This allows you to modify areas such as the servo direction and travel, servo gain, dead band and boost.

  • Allows for individual servo programming
  • Can automatically detect servo output
  • Compatible with XBus and PWM receiver signals
  • Can be programmed using JR XG transmitter
  • Adjustable servo gain, deadband and boost
  • Ideal for small aircraft, helicopter swashes and cars
Torque at 4.8V
2.8kg・cm
Torque at 6.6V
3.8kg・cm
Torque at 7.4V
4.3kg・cm
Speed at 4.8V
0.14Sec/60°
Speed at 6.6V
0.11Sec/60°
Speed at 7.4V
0.10 Sec/60°
Weight
30g
Ball Bearings
BB (W)
SKU JRPSNX3425
Brand JR
