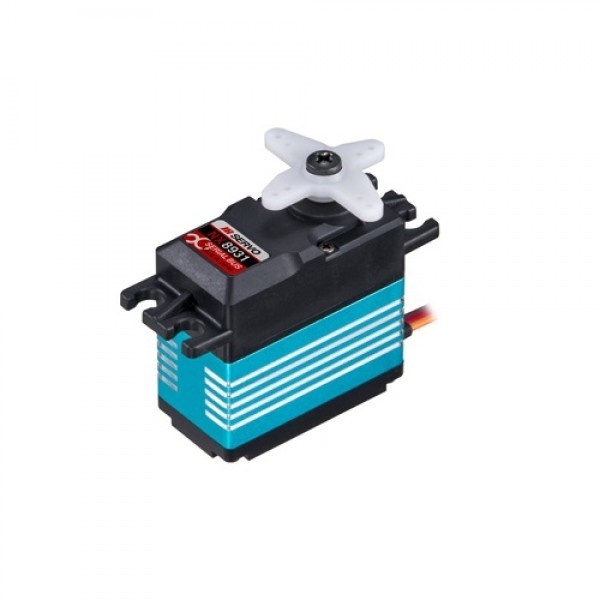

The NX range of servos automatically detect the type of output they are plugged into - conventional receiver PWM outputs, or XBus. This means NX series servos are XBus compatible, and also compatible with PWM receiver signals without any converter, allowing modelers to use conventional receiver systems.

Compatible Receiver systems: DMSS · DSMJ · 72MHz · 40MHz

When used on a JR XBus system, the NX series servos can be programmed in ways not previously possible. No additional programming device is necessary, these servos can be setup using a JR XG series transmitter.

Changes made to servo programming are immediately apparent. Not only can servo direction and travel be adjusted, but it is now possible to fine tune servo gain, dead band and boost to suit your aircraft and desired response. This precise setup allows servo hunting to be eliminated and precise feel maintained.

The NX Series servos can be programmed for up to 180 degress of travel, and can therefore be used as retract servos.

  • Metal Gears
  • Dual Ball Bearing
  • Heatsink Case
  • MPU: 32Bit
Dimensions
35 x 21 x 40.5mm
Wire Length
300mm
Voltage Range
4.5V-8.5V
Weight
72g
Torque
23.0 (4.8V)
29.6 (6.6V)
36.5 (7.4V)
Speed
0.20 (4.8V)
0.16 (6.6V)
0.13 (7.4V)
SKU JRPSNX8931
Brand JR
Shipping Weight 0.5000kg
