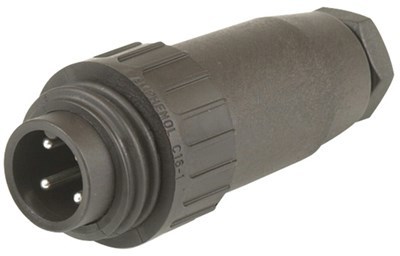

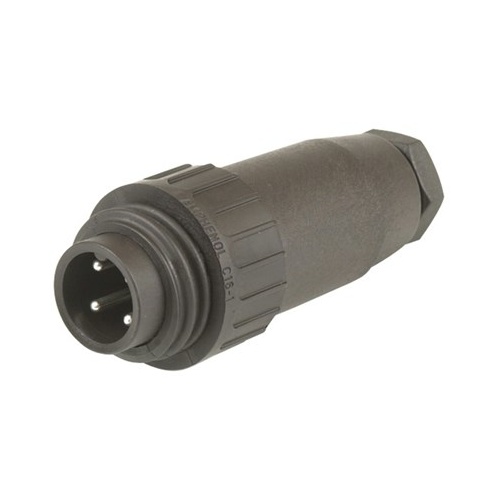

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.

Specifications:
Electrical: 3 Pole + PE
Current Rating: 16.0A @ 55°C
Insulation resistance: = 10^8ohm
Voltage Rating: 380VAC RMS/300VDC
Contact Resistance: =5mohm
Contact Material: Silver
Contact Screw: Solder
Wire Conductor (max): 2.5mm²
Environmental:
Temperature range: -40°C to + 100°C
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
SKU AM-PP1006
Model # PP1006
Barcode # 9319236906552
